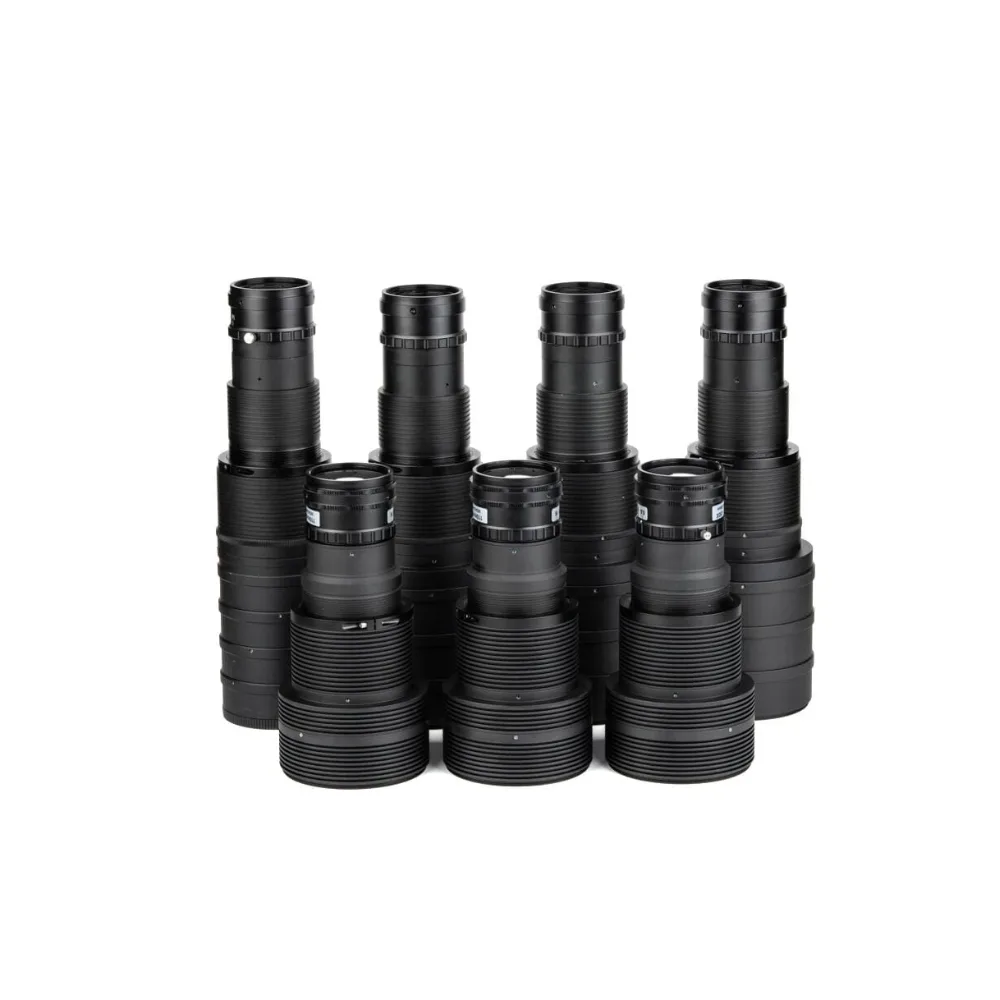

JC-LSE4040A-M72
40mm | φ60mm | F4.0 | M72-Mount – 8K/16K Line Scan And Large Format Lens
Features
- Ultra-large image plane φ60mm
- Support 8K/7μ or 16K3.5μ high-resolution line scan camera
- Ultra-low optical distortion, uniform imaging at the center and edge
- Strict chromatic aberration correction
- Suitable for large-format high-precision detection
With high resolution, high-speed scanning capability and large field of view, it provides efficient solutions for semiconductor inspection, photovoltaic industry, FPD inspection, factory automation vision tasks such as 3D-AOI and SPI, continuous material inspection, medical imaging, and image recognition and analysis in scientific research.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description
Product Parameter
*Line scan and large format lenses need to be matched with adapter rings and extension rings according to the camera sensor size, camera mount thread size and shooting field of view. Please contact our sales staff to confirm the parameters. Thank you!
| Model No. | JC-LSE4040A-M72 |
| Sensor Size | Φ60mm（8K7μ/16K3.5μ） |
| Magnification | 0.262X-0.05X |
| Focal Length | 40mm±0.05 |
| Optical Length | 149.65mm±0.2 |
| F No. | F4.0±0.1 |
| MBFL | 5.95mm±0.2 |
| FOV | 71.2°φ60mm |
| CRA | 24.28°±2° |
| Optical Distortion | -0.88%±5% |
| Relative Illumination | 50%±5% |
| Working Distance | 150mm~800mm |
|
8K7μ 40mm Mag. Reference |
|
| Object Distance(mm) | Magnification(x) |
| 150 | -0.262 |
| 200 | -0.197 |
| 250 | -0.159 |
| 300 | -0.132 |
| 350 | -0.114 |
| 400 | -0.0997 |
| 450 | -0.089 |
| 500 | -0.08 |
| 550 | -0.073 |
| 600 | -0.067 |
| 650 | -0.0617 |
| 700 | -0.057 |
| 750 | -0.054 |
| 800 | -0.05 |

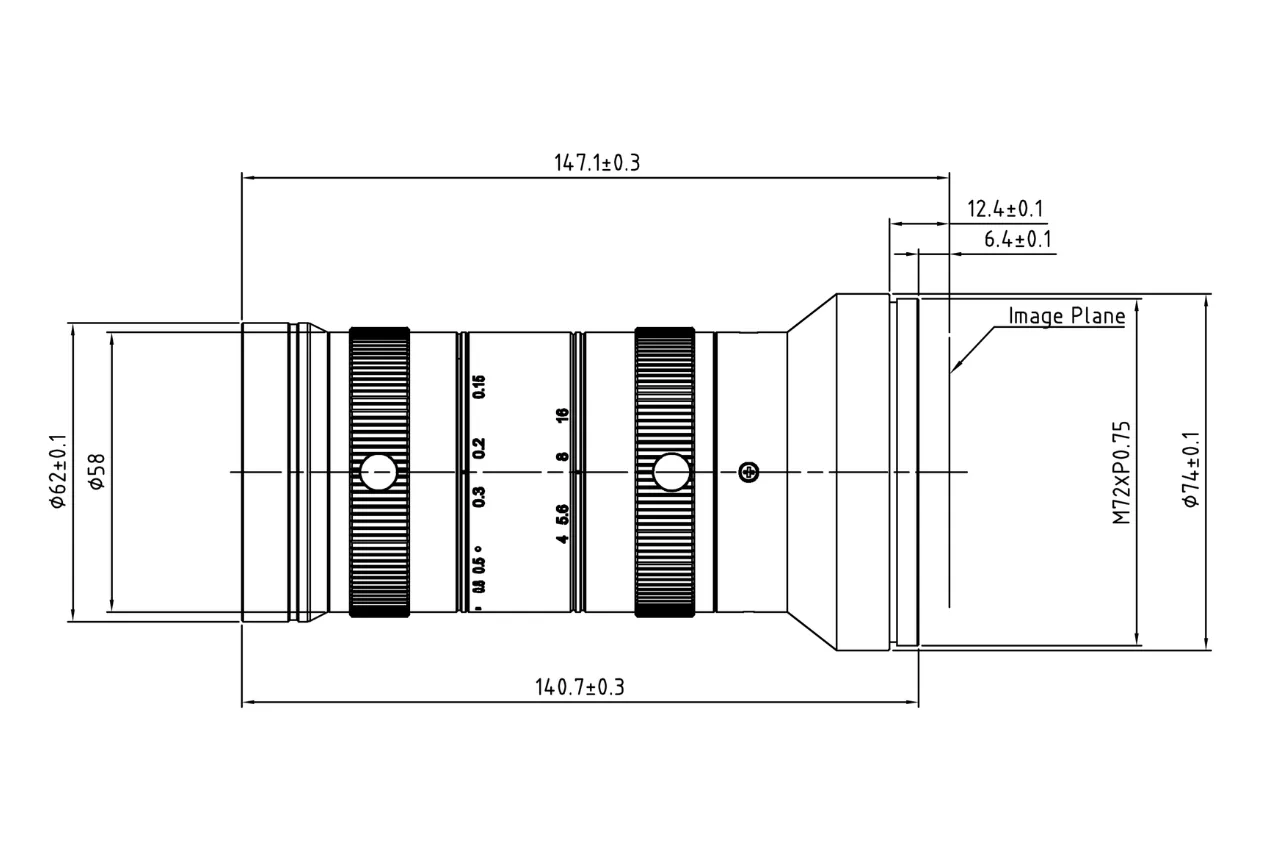

Dimensions
