JC-LSE6040HI-IR
60mm | φ60mm | F4.0 | F/M42/M48/M58/M72-Mount – 8K/16K Line Scan And Large Format Lens
Features
- Large image sensor: φ60mm image circle, suitable for 16K3.5u/8K7u cameras
- Athermalization: -20℃~+60℃ without defocusing
- Large travel focusing range: 220mm~infinity working distance, no extension ring required,supports 850nm wavelength imaging
- Better brightness uniformity at the center and edge of the aperture image
- Anti-vibration focusing fastening method
With high resolution, high-speed scanning capability and large field of view, it provides efficient solutions for semiconductor inspection, photovoltaic industry, FPD inspection, factory automation vision tasks such as 3D-AOI and SPI, continuous material inspection, medical imaging, and image recognition and analysis in scientific research.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description
Product Parameter
*Line scan and large format lenses need to be matched with adapter rings and extension rings according to the camera sensor size, camera mount thread size and shooting field of view. Please contact our sales staff to confirm the parameters. Thank you!
| Model No. | JC-LSE6040HI-IR |
| Focal Length | 60mm |
| Sensor Size | Φ60mm |
| F No. | F4.0-F16 |
| Working Distance | 210mm~∞ |
| Mount | F/M42/M48/M58/M72 |
| Weight | 189.2g |
| Temperature Range | -20℃～+60℃ |
| Filter Size | M43x0.75-6g |
| WD mm | I/O mm | Object FOV mm | Image FOV | Mag. |
| 1243.69 | 1311.59 | 938.58 | 8192×7.05μ | 0.05x |
| 793.69 | 883.39 | 719.96 | 8192×7.05μ | 0.08x |
| 633.69 | 724.69 | 568.35 | 8192×7.05μ | 0.10x |
| 501.69 | 594.43 | 443.24 | 8192×7.05μ | 0.13x |
| 438.69 | 494.49 | 484.54 | 8192×7.05μ | 0.15x |
| 333.69 | 430.86 | 283.90 | 8192×7.05μ | 0.20x |
| 277.69 | 377.71 | 230.74 | 8192×7.05μ | 0.25x |
| 218.69 | 391.99 | 174.70 | 8192×7.05μ | 0.33x |

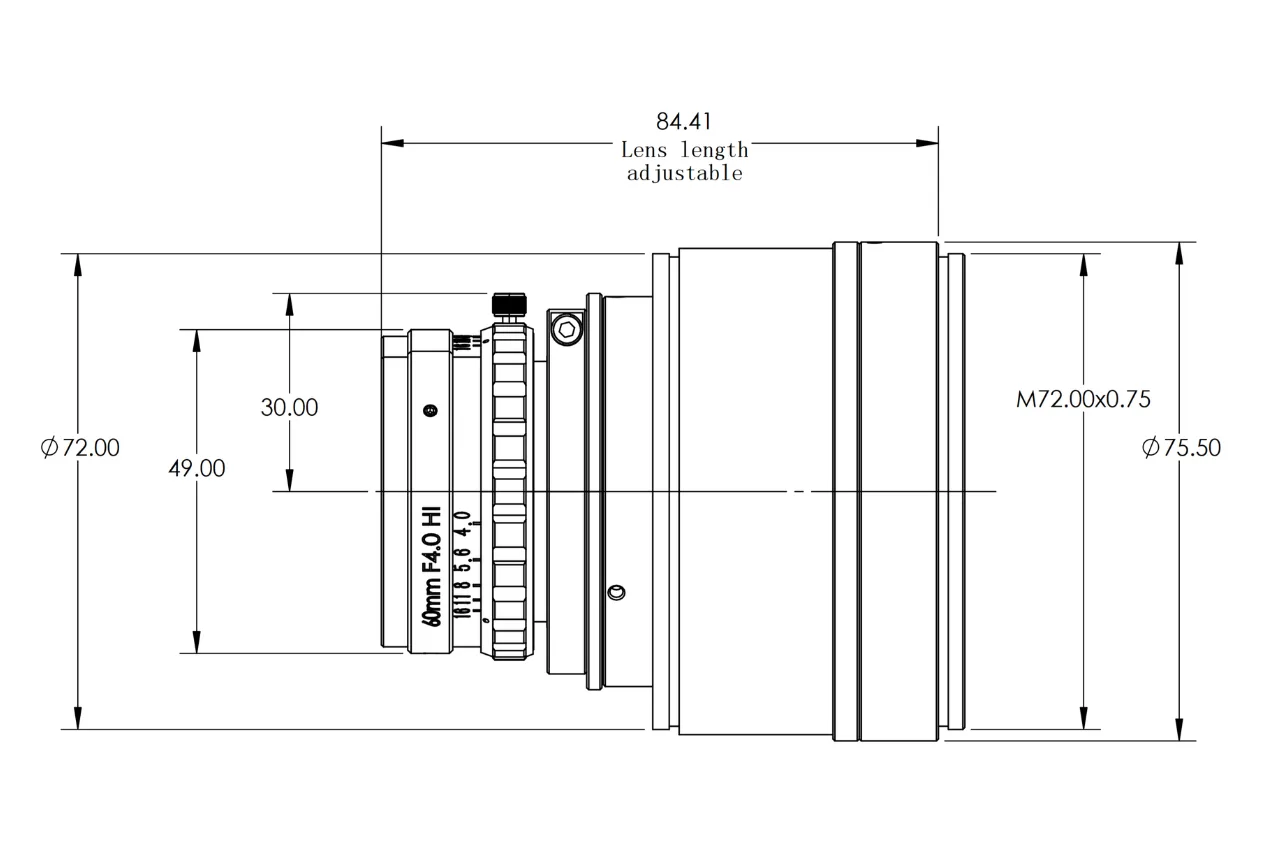

Dimensions
