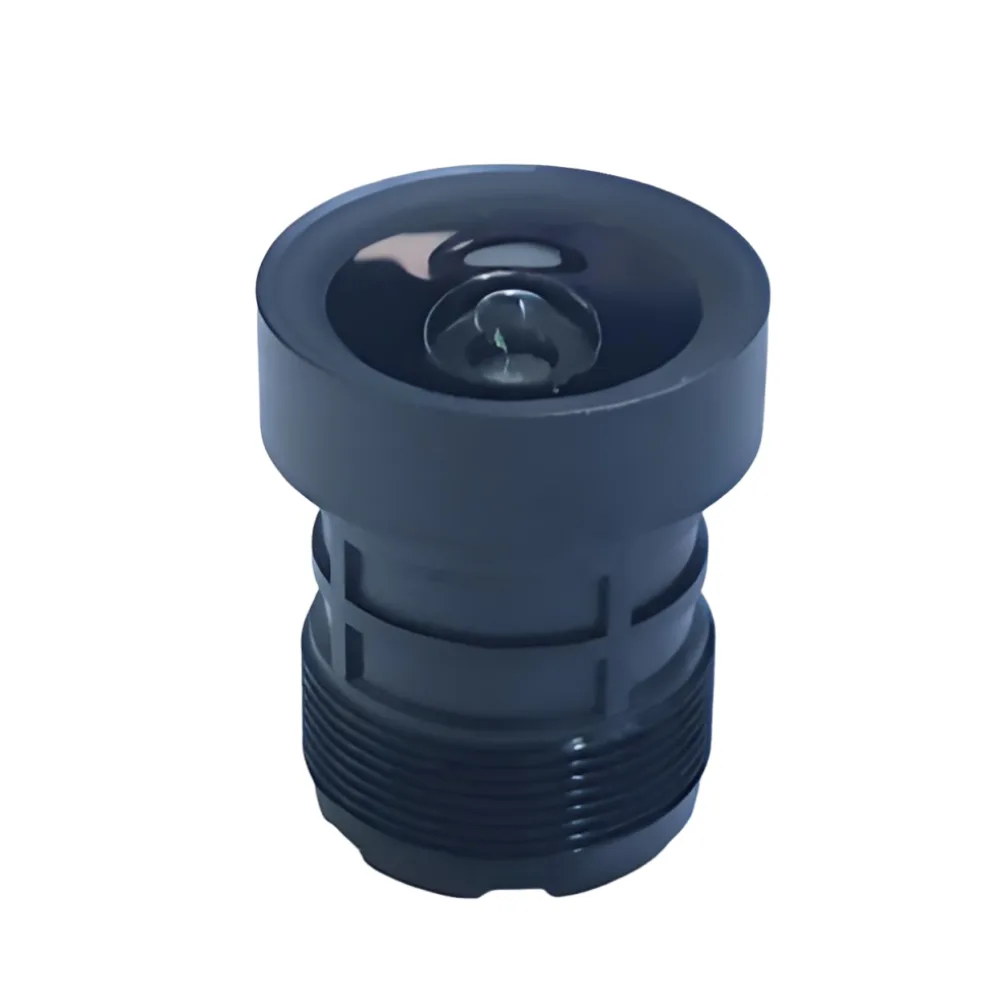

JC-C02816-M12
2.8mm | 1/2.7″ | F1.6±10%| M12-Mount | – 8MP M12 Lens
Features
- 2.8mm 8MP M12 lens
- FOV(D*H*V): 134°x111.5°x59°
- Compatible with 1/2.7″,1/2.8″,1/3″ image sensor
- Various filters can be installed
Application areas include panoramic imaging, security monitoring, automotive, CCTV, intelligent AI, drones, etc.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description
Product Parameter
| Model No. | JC-C02816-M12 | |||
| Focal Length | 2.8mm±5% | |||
| Image Circle | 1/2.7” | |||
| Resolution(Center MTF) | 8MP | |||
| F No. | F1.6±10% | |||
| Mount | M12xP0.5 | |||
| Sensor | 1/2.7”(16:9) | 1/2.8”(16:9) | 1/3”(OV4689) | |
| FOV | H | 111.5° | 107° | 102.5° |
| V | 59° | 57° | 55.2° | |
| D | 134° | 128° | 122° | |
| TV Distortion | -56% | -51% | -46% | |
| CRA | 15.9° | 12.1° | 10.7° | |
| Dimension | Φ14×16.85mm | |||
| MOD | 1.8m | |||
| Lens Construction | 1G5P | |||
| MBFL | 5.27mm | |||
| Temperature | -20℃~+80℃ | |||
| Operation | Iris | Fixed | ||
| Focus | Manual | |||
| Zoom | Fixed | |||

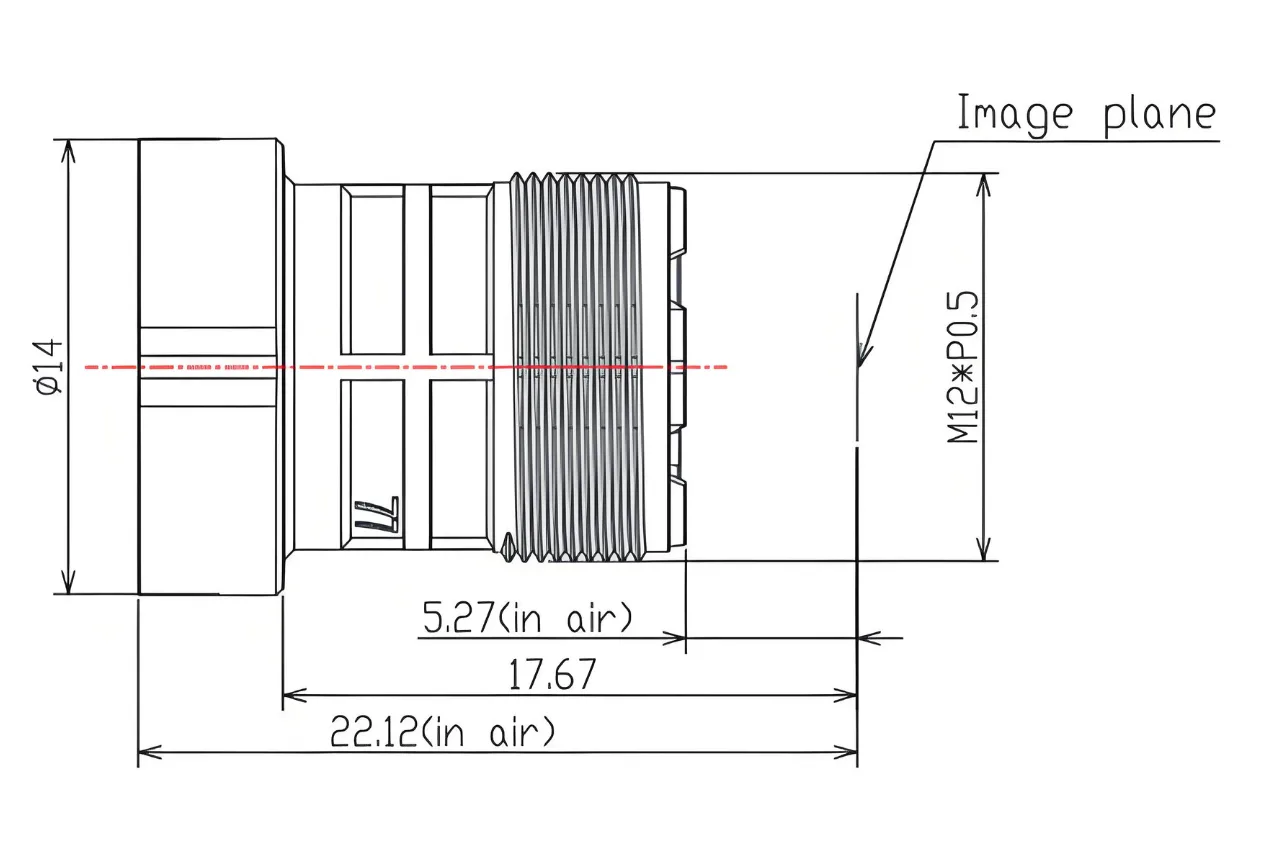

Dimensions
