JC-C0820-20MP
1″ | 8mm | F2.0 | 20MP | C-Mount – FA Industrial HD Lens
Features
- High resolution: 20 megapixels 3.45μm sensor
- Athermalization: -20℃~+60℃
- Focusing range: 250mm~∞ working distance
- Better brightness uniformity at the center and edge of the aperture image
- Anti-vibration focusing fastening method
Special lenses for macro photography, often used in industry for close-up observation scenarios such as product inspection, quality control and tracking.
Resources
Inquiry Now
Description
Description
Product Parameter
| Model No. | JC-C0820-20MP | |
| Focal Length | 8mm | |
| Resolution | 20MP | |
| Sensor Size | 1″ | |
| Pixel Size | 3.45μm | |
| Mount | C-Mount | |
| F No. | F2.0–F11 | |
| Working Distance | 250mm | |
| Operation | Focus | Manual |
| Aperture | Manual | |
| FOV(D*H*V) | 1″ | 90.6°×72.2°×54.1° |
| 1/2″ | 51.7°× 42.2°× 31.9° | |
| TV Distortion | 1″ | -4.1%@y=8.0mm |
| 1/2″ | -2.1%@y=4.0mm | |
| Filter Size | M67×P0.75 | |
| BFL | 10.6mm | |
| Temperature Range | -20℃～+60℃ | |
| Weight | 186g | |

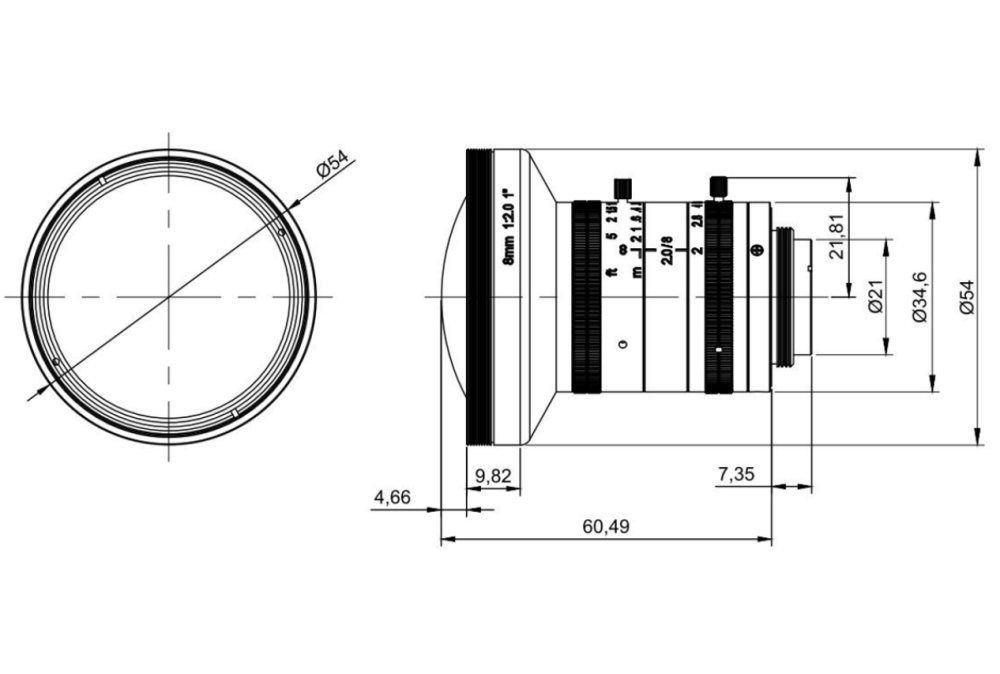

Dimensions
