JC-C02840-M12

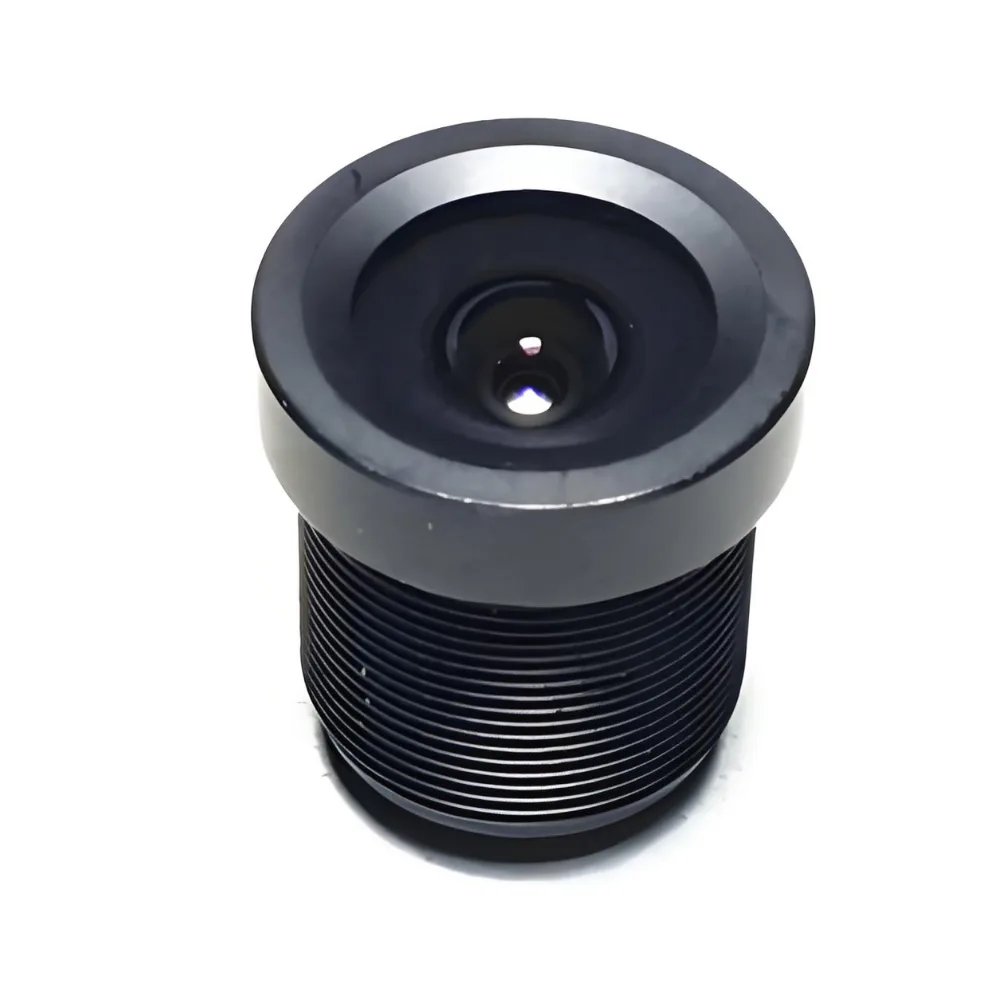

2.8mm | 1/3″ | F4.0| M12-Mount | – 2MP M12 Lens
Features
- 2.8mm 2MP M12 lens
- FOV(D*H*V): 128°x98°x81.5°
- Compatible with 1/3″,1/4″ image sensor
- Various filters can be installed
Application areas include panoramic imaging, security monitoring, automotive, CCTV, intelligent AI, drones, etc.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description
Product Parameter
| Model No. | JC-C02840-M12 | ||
| Focal Length | 2.8mm | ||
| Image Circle | 1/3” | ||
| Resolution | 2MP | ||
| F No. | F4.0 | ||
| Mount | M12*P0.5 | ||
| BFL | 4.66mm | ||
| FBL | 4.86mm | ||
| Lens Construction | 3G4P | ||
| MOD | 100mm | ||
| Dimension | Φ14×15.95 | ||
| Sensor | 1/3” | 1/4” | |
| FOV | D | 128° | 93° |
| H | 98° | 70° | |
| V | 81.5° | 49° | |
| Temperature Range | -20℃~+60℃ | ||

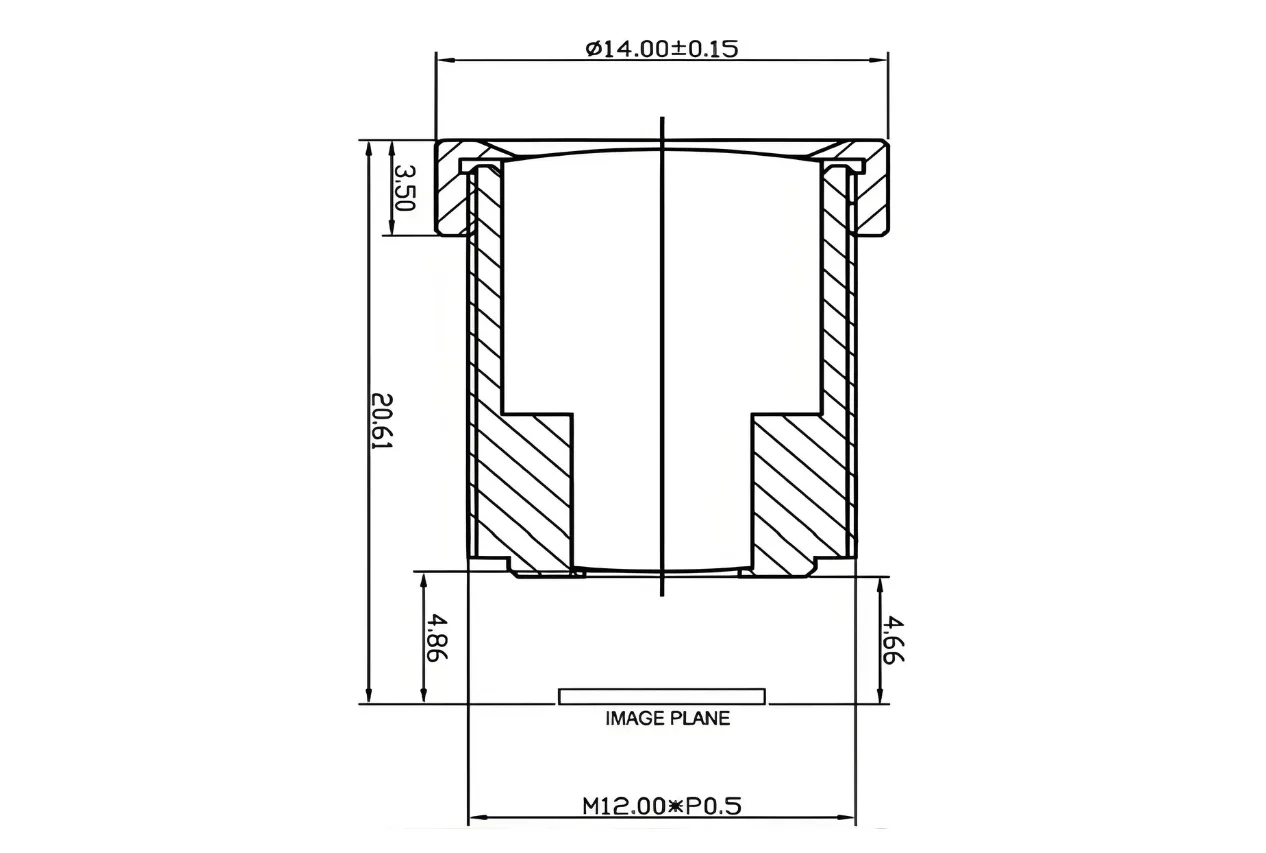

Dimensions
