JC-C16SV-25MP
1.2″ | 16mm | F2.8 | 25MP | C-Mount – Anti-Vibration Macro Lens
Features
- 1.2″ 25 megapixel industrial lens, focal length optional 16mm/20mm/25mm/35mm/50mm
- High resolution, 25 megapixel 2.74μm sensor
- Ultra-low distortion, uniform imaging
- Focus range from 100mm to infinity
- Anti-vibration design, anti-vibration C-mount with tight clamping method
- Athermal design: -20℃~+60℃, the picture is not out of focus
Its unique anti-vibration performance and high-precision imaging capabilities make it play an irreplaceable role in many fields such as scientific research, industrial testing, security monitoring, and education and popular science.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description

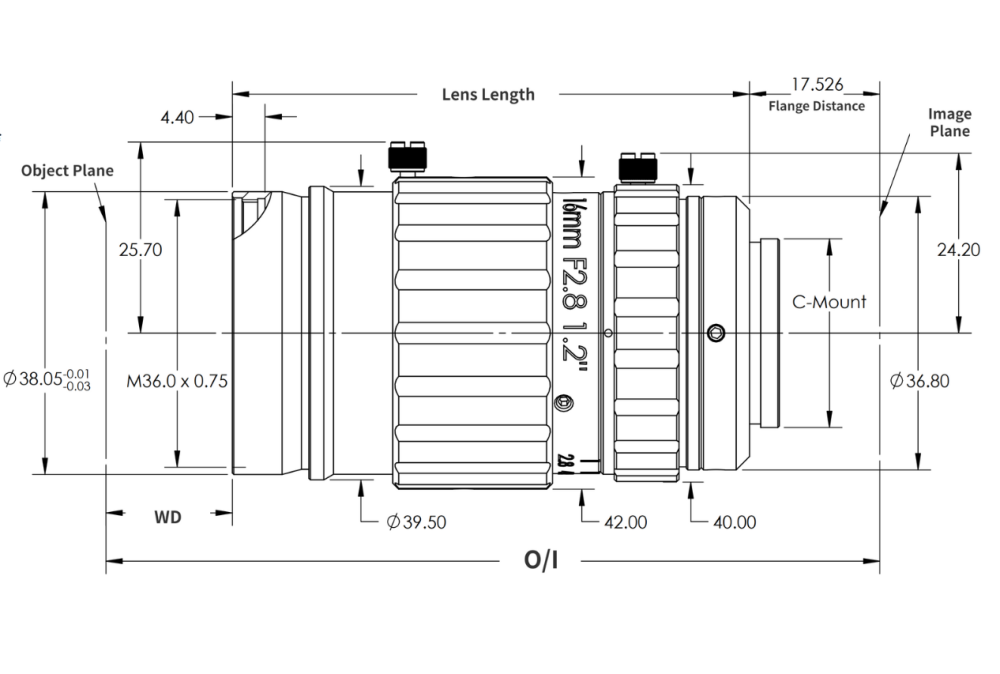

Product Parameter
| Model No. | JC-C16SV-25MP | |
| Focal Length | 16mm | |
| Resolution | 25MP | |
| Sensor Size | 1.2″(φ19.3mm) | |
| Working Distance | 150mm~∞ | |
| Mount | C-Mount | |
| F No. | F2.8-F16 | |
| Operation | Focus | Manual |
| Aperture | Manual | |
| Filter Size | 38.05V-Mount | |
| BFL | mm | |
| Temperature Range | -20℃～+60℃ | |
| Weight | 186g | |
| WD
(mm) |
I/O
(mm) |
Length
(mm) |
Mag. | Optical Distortion | 1.2” 24.47MP | 1.1” 25MP | 1” 20MP | |||
| H(mm) | V(mm) | H(mm) | V(mm) | H(mm) | V(mm) | |||||
| 14.577 | 12.604 | 12.8 | 12.8 | 13.133 | 8.755 | |||||
| 150 | 237.1 | 69.6 | 0.097x | -1.31% | 150.2 | 129.6 | 131.7 | 131.7 | 135.1 | 89.7 |
| 250 | 337.1 | 69.6 | 0.061x | -0.60% | 241.5 | 208.6 | 211.9 | 211.9 | 217.5 | 144.5 |
| 350 | 437.1 | 69.6 | 0.044x | -0.22% | 332.6 | 287.5 | 292 | 292 | 299.6 | 199.2 |
| 450 | 537.1 | 69.6 | 0.035x | 0.01% | 423.6 | 366.3 | 372 | 372 | 381.7 | 253.8 |
| 550 | 637.1 | 69.6 | 0.029x | 0.17% | 514.6 | 445 | 451.9 | 451.9 | 463.7 | 308.5 |
| 650 | 737.1 | 69.6 | 0.024x | 0.29% | 605.6 | 523.7 | 531.9 | 531.9 | 545.7 | 363.1 |
| 750 | 837.1 | 69.6 | 0.021x | 0.38% | 696.5 | 602.4 | 611.8 | 611.8 | 627.7 | 417.8 |
| 1000 | 1087.1 | 69.6 | 0.016x | 0.53% | 923.8 | 799.2 | 811.6 | 811.6 | 832.7 | 554.3 |
| 1250 | 1337.1 | 69.6 | 0.013x | 0.62% | 1151.1 | 995.9 | 1011.4 | 1011.4 | 1037.7 | 690.9 |
| 1500 | 1587.1 | 69.6 | 0.011x | 0.68% | 1378.4 | 1192.7 | 1211.2 | 1211.2 | 1242.6 | 827.4 |
