JC-CTH1-07X-107C
1″ | 0.7X | F7 | 0.64mm – Object Telecentric Lens
Features
- Perfect image quality, supports 10MPdigital cameras
- High contrast, low distortion, ultra-clear image
- Full range of object-side telecentric fixed-magnification lenses, with multiple working distances/magnifications/CCDs to choose from
- Widely used in high-precision visual positioning and other applications
Suitable for semiconductor inspection, transparent material inspection, glass bottle defect recognition, high-speed measurement and other industry applications, online screening of lithium electrode coating defects.
Resources
Inquiry Now
Description
Description

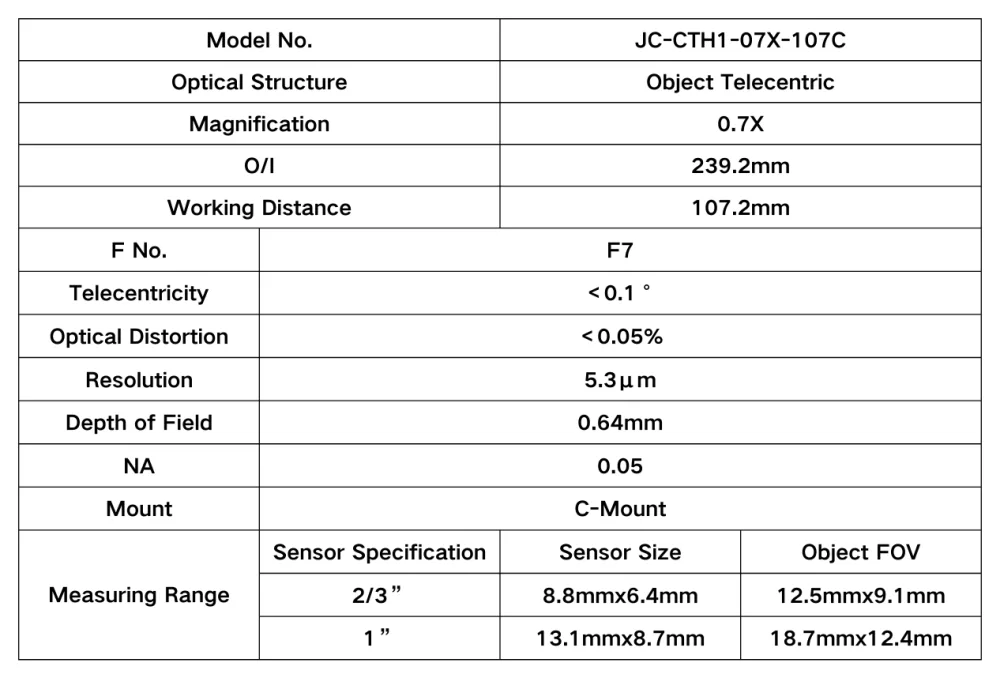

Product Parameter
| Model No. | JC-CTH1-07X-107C |
| Optical Structure | Object Telecentric |
| Magnification | 0.7X |
| O/I | 239.2mm |
| Working Distance | 107.2mm |
| F No. | F7 | ||
| Telecentricity | ＜0.1° | ||
| Optical Distortion | ＜0.05% | ||
| Resolution | 5.3μm | ||
| Depth of Field | 0.64mm | ||
| NA | 0.05 | ||
| Mount | C-Mount | ||
| Measurement Range | Sensor Specification | Sensor Size | Object FOV |
| 2/3” | 8.8mmx6.4mm | 12.5mmx9.1mm | |
| 1” | 13.1mmx8.7mm | 18.7mmx12.4mm | |

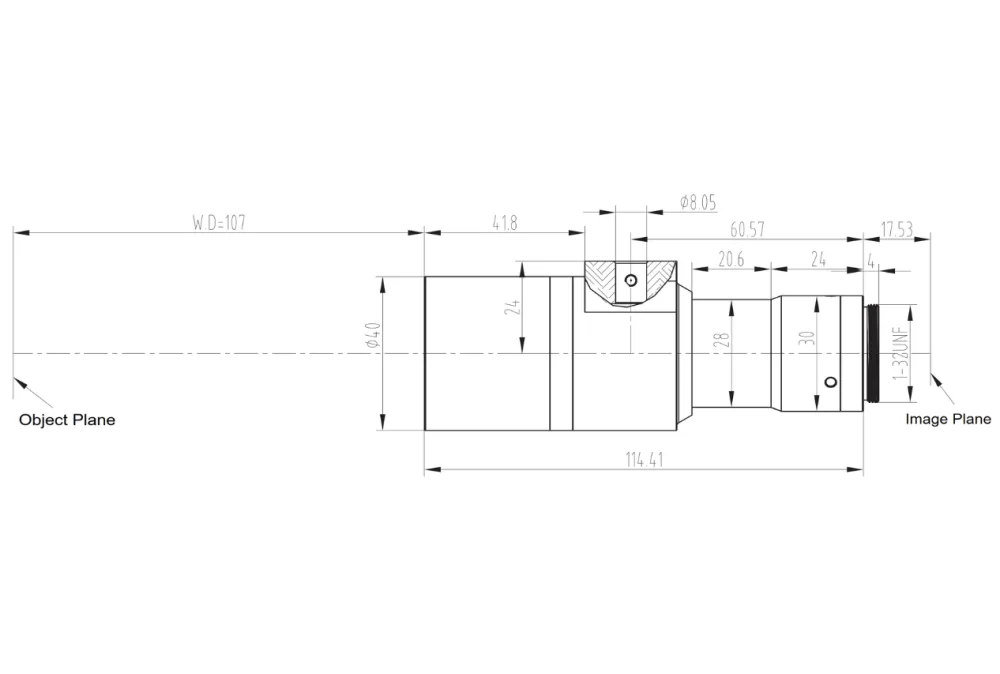

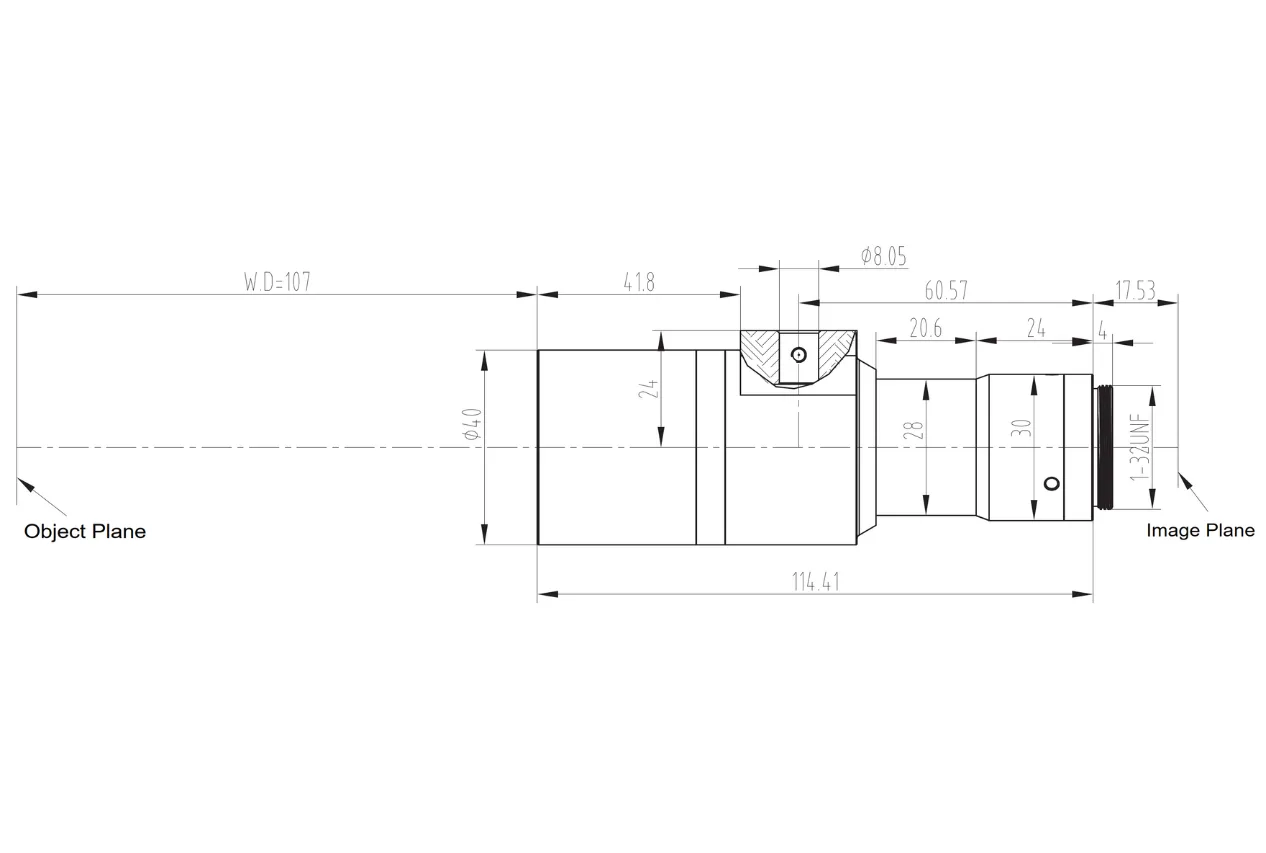

Dimensions
