JC-CTH11-2X-65G
1.1″ | 2X | F7.1-F16 | 0.08mm@3.45μm – Object Telecentric Lens
Features
- Perfect image quality, supports 10MP digital cameras;
- High contrast, low distortion, ultra-clear;
- Full range of object-side telecentric fixed-magnification lenses, with multiple working distances/magnifications/CCDs to choose from;
- Widely used in high-precision visual positioning and other applications.
Suitable for semiconductor inspection, transparent material inspection, glass bottle defect recognition, high-speed measurement and other industry applications, online screening of lithium electrode coating defects.
Resources
Inquiry Now
Description
Description

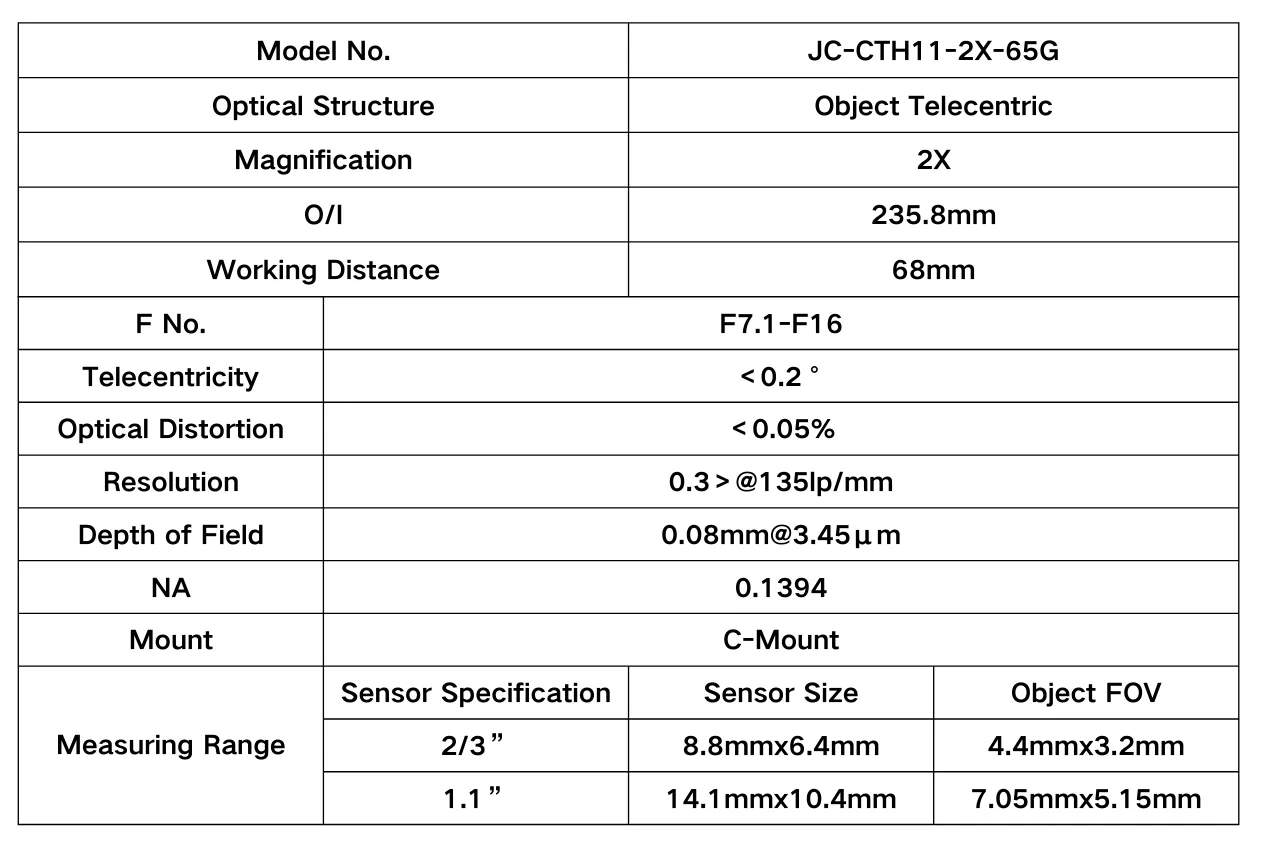

Product Parameter
| Model No. | JC-CTH11-2X-65G |
| Optical Structure | Object Telecentric |
| Magnification | 2X |
| O/I | 235.8mm |
| Working Distance | 68mm |
| F No. | F7.1-F16 | ||
| Telecentricity | ＜0.2° | ||
| Optical Distortion | ＜0.05% | ||
| Resolution | 0.3＞@135lp/mm | ||
| Depth of Field | 0.08mm@3.45μm | ||
| NA | 0.1394 | ||
| Mount | C-Mount | ||
| Measurement Range | Sensor Specification | Sensor Size | Object FOV |
| 2/3” | 8.8mmx6.4mm | 4.4mmx3.2mm | |
| 1.1” | 14.1mmx10.4mm | 7.05mmx5.15mm | |

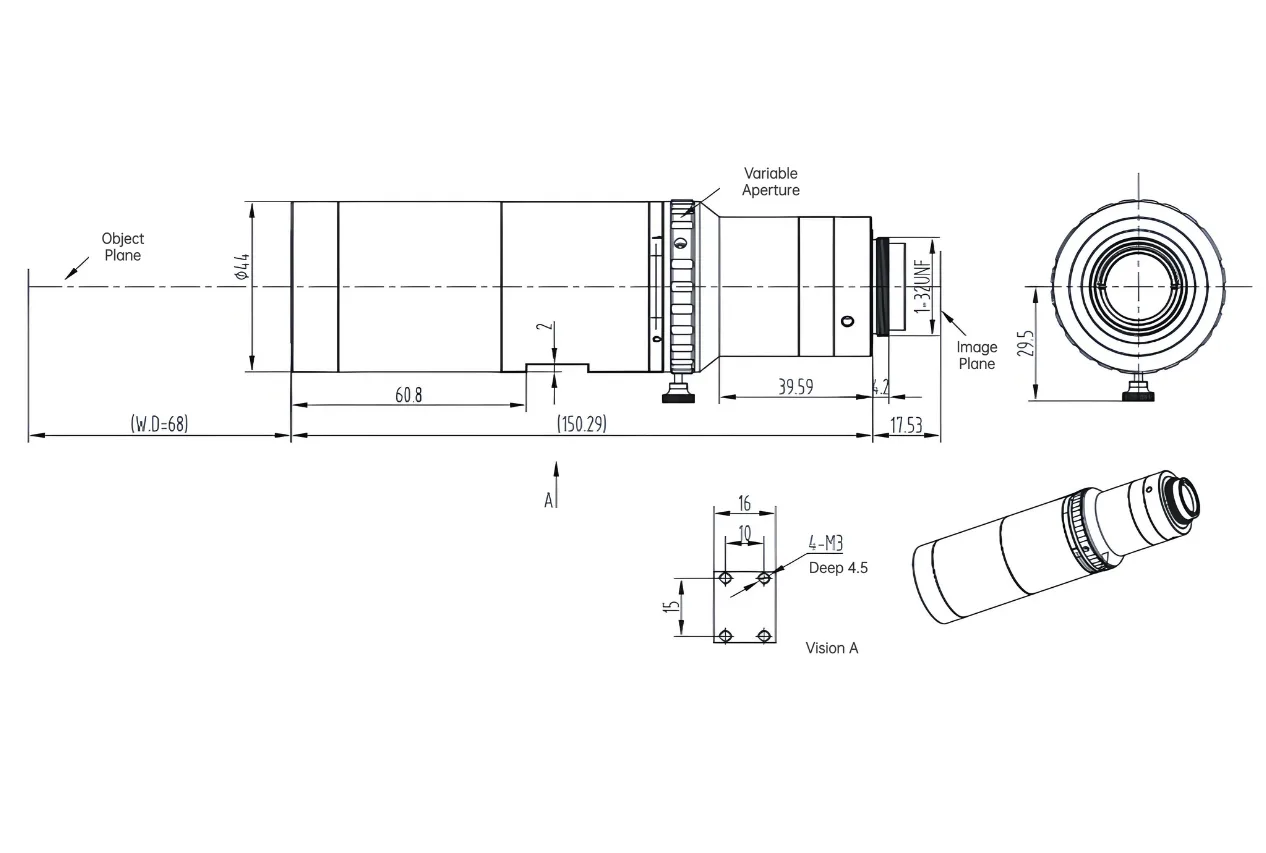

Dimensions
