JC-CTH111-1X-110C
1.1″ | 1X | F7 | 0.58mm – Object Telecentric Lens
Features
- Perfect image quality, supports 10MP digital cameras
- Robust structural design with high anti-vibration
- Excellent center and peripheral imaging
- Widely used in high-precision visual positioning and other applications
Suitable for semiconductor inspection, transparent material inspection, glass bottle defect recognition, high-speed measurement and other industry applications, online screening of lithium electrode coating defects.
Resources
Inquiry Now
Description
Description

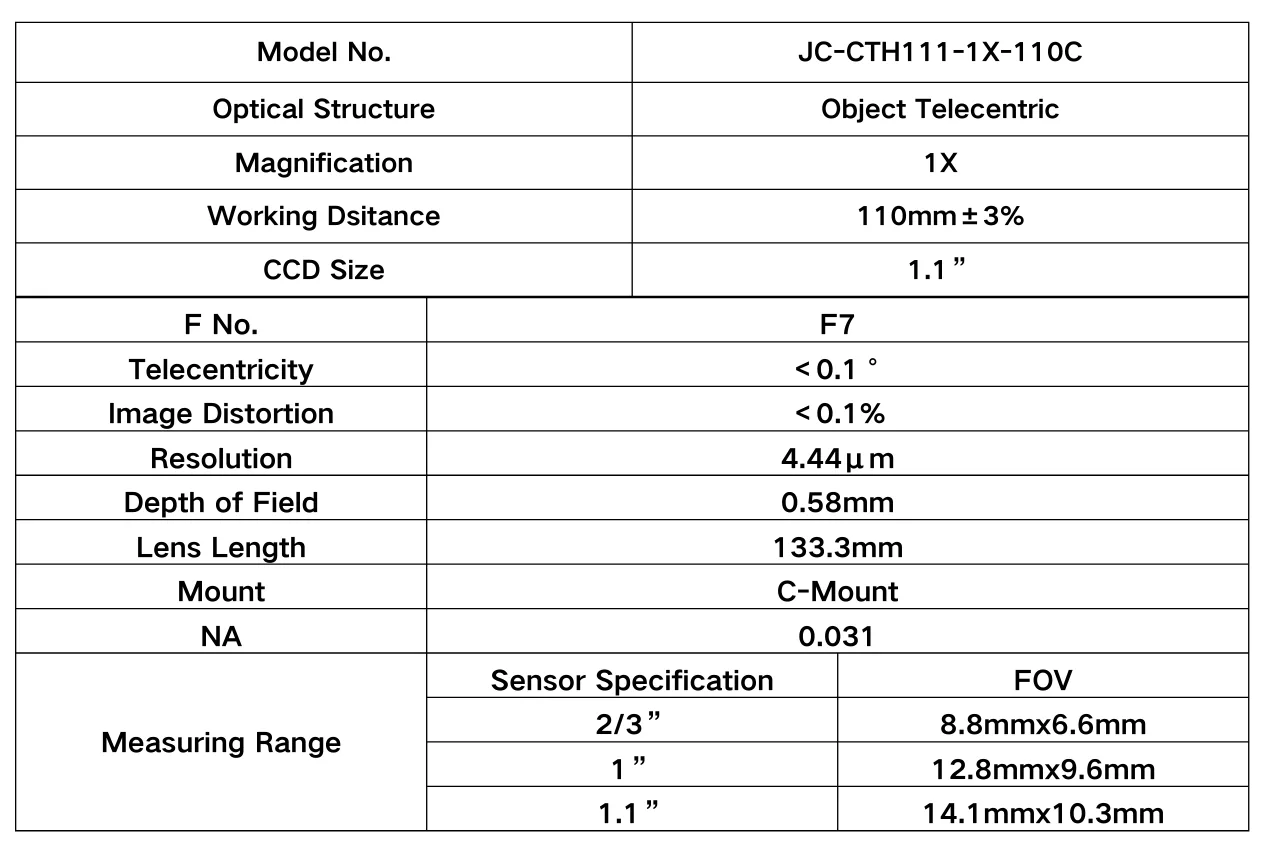

Product Parameter
| Model No. | JC-CTH111-1X-110C |
| Optical Structure | Object Telecentric |
| Magnification | 1X |
| Working Dsitance | 110mm±3% |
| CCD Size | 1.1” |
| F No. | F7 | |
| Telecentricity | ＜0.1° | |
| Image Distortion | ＜0.1% | |
| Resolution | 4.44μm | |
| Depth of Field | 0.58mm | |
| Lens Length | 133.3mm | |
| Mount | C-Mount | |
| NA | 0.031 | |
| Measurement Range | Sensor Specification | FOV |
| 2/3” | 8.8mmx6.6mm | |
| 1” | 12.8mmx9.6mm | |
| 1.1” | 14.1mmx10.3mm | |

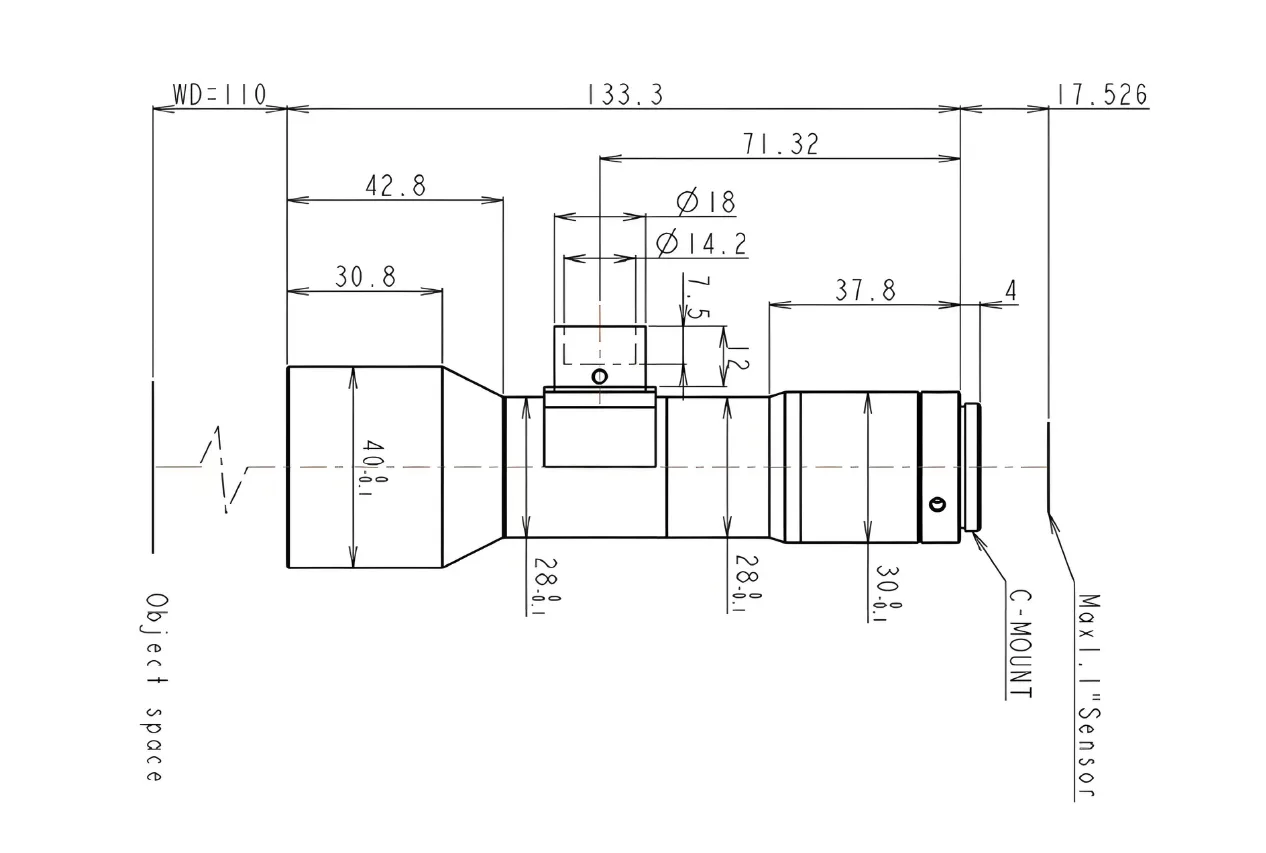

Dimensions
