JC-CTH192X-120-M72-12
120mm±3% | 1.92X | F8-F111.5 | 0.5mm@F18 – Line Scan Bi-Telecentric Lens
Features
- Designed for high-speed and high-precision industrial detection needs
- Double-sided telecentric design eliminates perspective errors during line scanning
- Ultra-low distortion, large target surface adaptation, uniform illumination
- Anti-vibration structure, multi-interface adaptation, strong compatibility
Suitable for lithium battery manufacturing, printing inspection, metal processing and other industry applications.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description

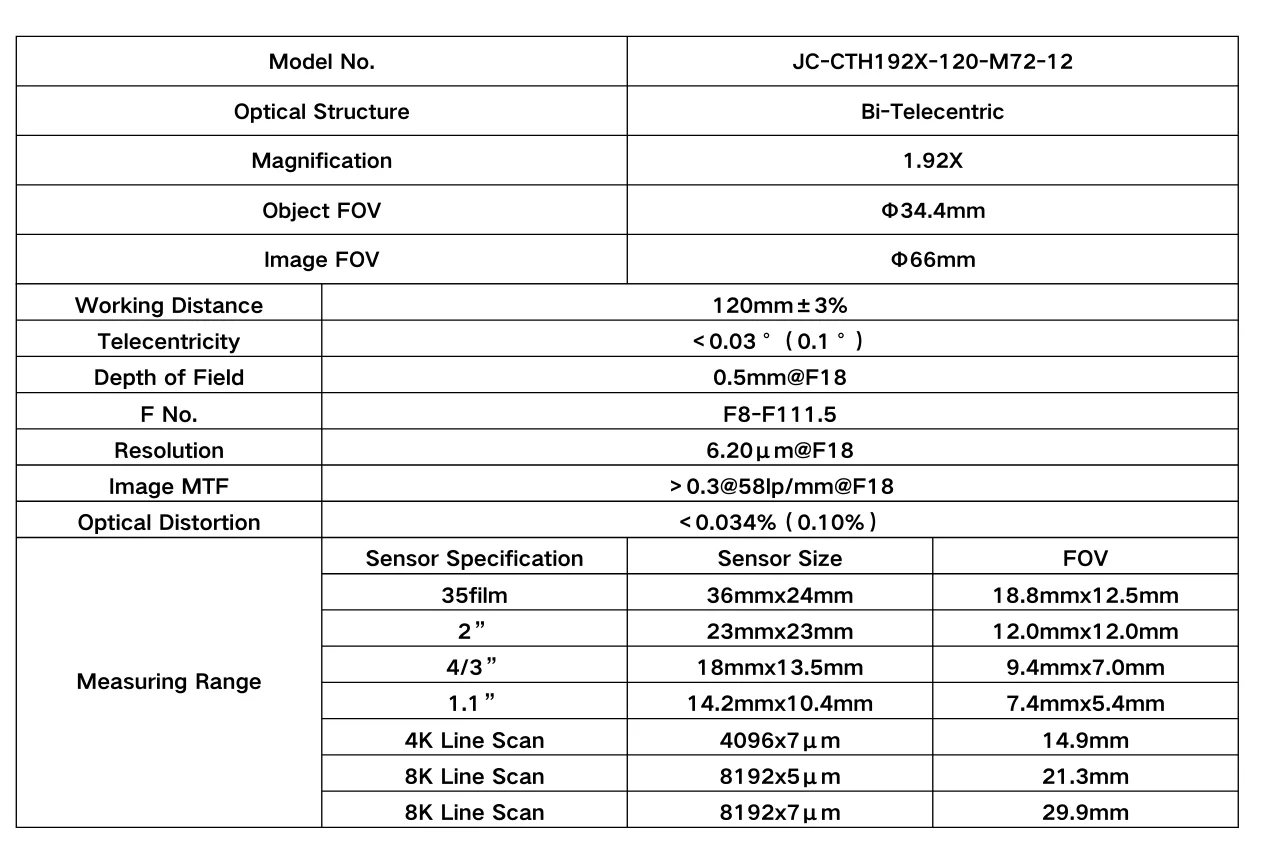

Product Parameter
| Model No. | JC-CTH192X-120-M72-12 |
| Optical Structure | Bi-Telecentric |
| Magnification | 1.92X |
| Object FOV | Φ34.4mm |
| Image FOV | Φ66mm |
| Working Distance | 120mm±3% | ||
| Telecentricity | ＜0.03°（0.1°） | ||
| Depth of Field | 0.5mm@F18 | ||
| F No. | F8-F111.5 | ||
| Resolution | 6.20μm@F18 | ||
| Image MTF | ＞0.3@58lp/mm@F18 | ||
| Optical Distortion | ＜0.034%（0.10%） | ||
| Measurement Range | Sensor Specification | Sensor Size | FOV |
| 35film | 36mmx24mm | 18.8mmx12.5mm | |
| 2” | 23mmx23mm | 12.0mmx12.0mm | |
| 4/3” | 18mmx13.5mm | 9.4mmx7.0mm | |
| 1.1” | 14.2mmx10.4mm | 7.4mmx5.4mm | |
| 4K Line Scan | 4096×7μm | 14.9mm | |
| 8K Line Scan | 8192×5μm | 21.3mm | |
| 8K Line Scan | 8192×7μm | 29.9mm | |

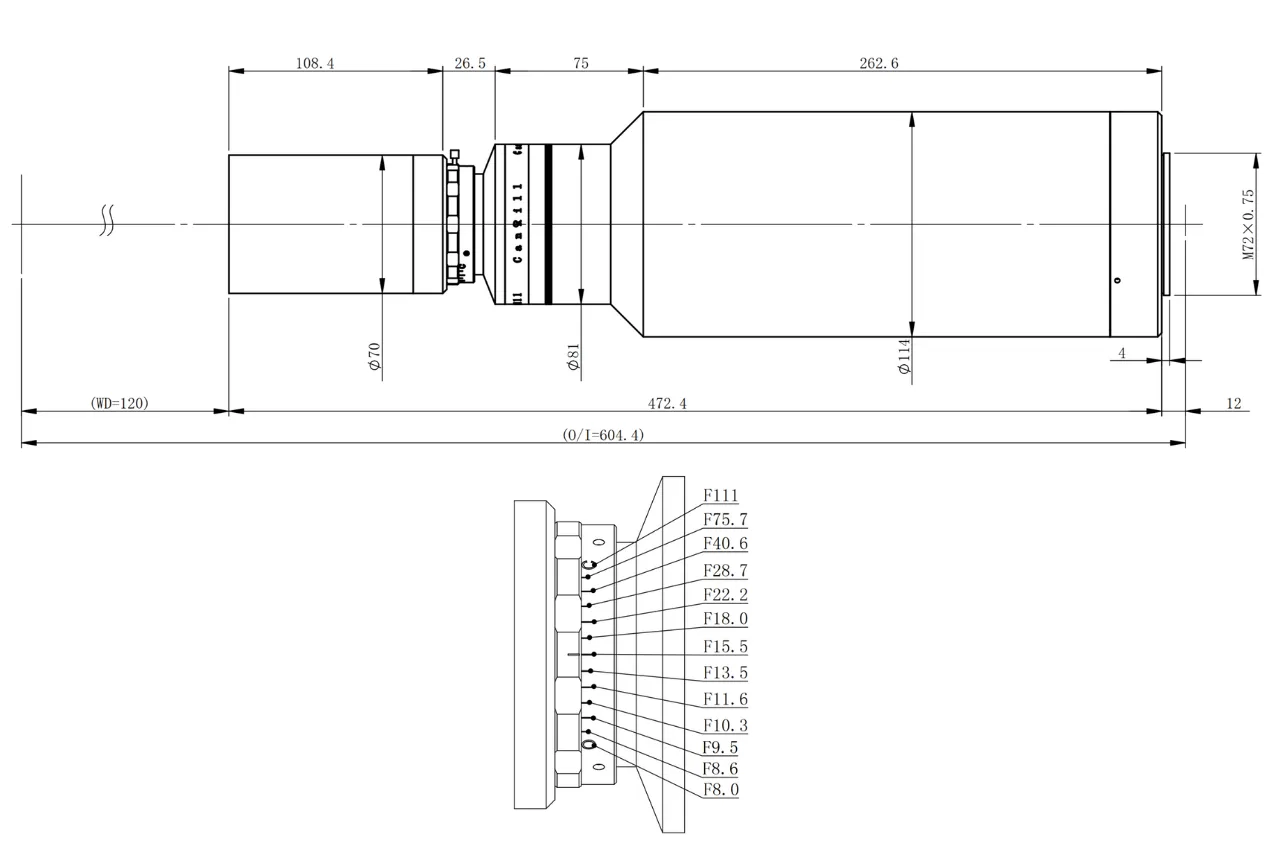

Dimensions
