JC-CTHC3XD-41-M58
71M | 3X | F9-F159.9 | 2.0-35.7μm – Line Scan Telecentric Lens
Features
- The object telecentric structure ensures that the main light of the object side is parallel to the optical axis, eliminating perspective error.
- Large target surface support, high resolution.
- Anti-vibration design, high temperature resistance, multi-interface compatibility
Suitable for semiconductor packaging, BGA solder ball 3D scanning, precision electronics, high-speed detection, defect screening and other industry applications.
Resources
Inquiry Now
Description
Description
In order to ensure the uniformity and lighting effect of coaxial light, the light output performance requirements of the point light source are as follows:
- Uniform and effective light emitting area ≥φ12mm
- Uniform and effective light emitting angle ≥±13° (NAO.22)

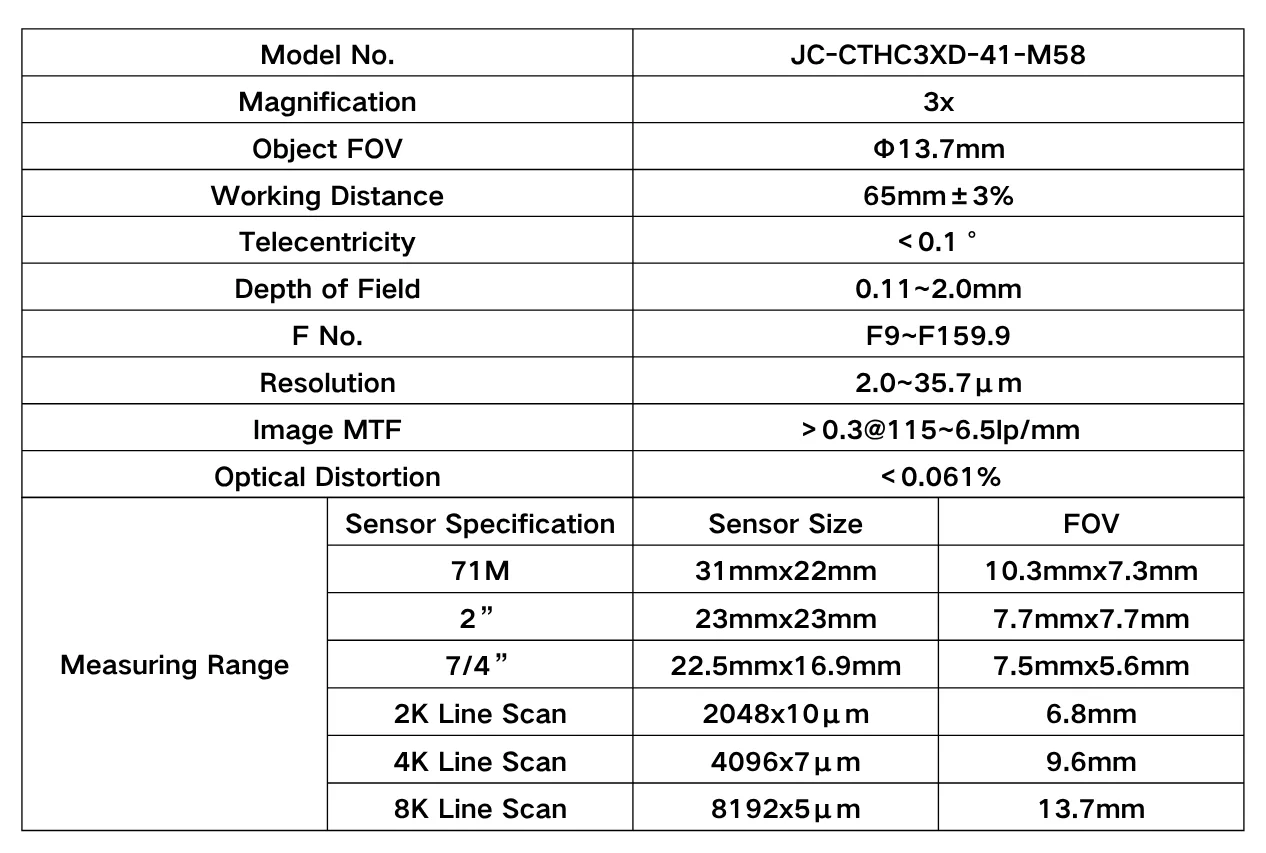

Product Parameter
| Model No. | JC-CTHC3XD-41-M58 |
| Magnification | 3X |
| Object FOV | Φ13.7mm |
| Working Distance | 65mm±3% |
| Telecentricity | ＜0.1° |
| Depth of Field | 0.11~2.0mm |

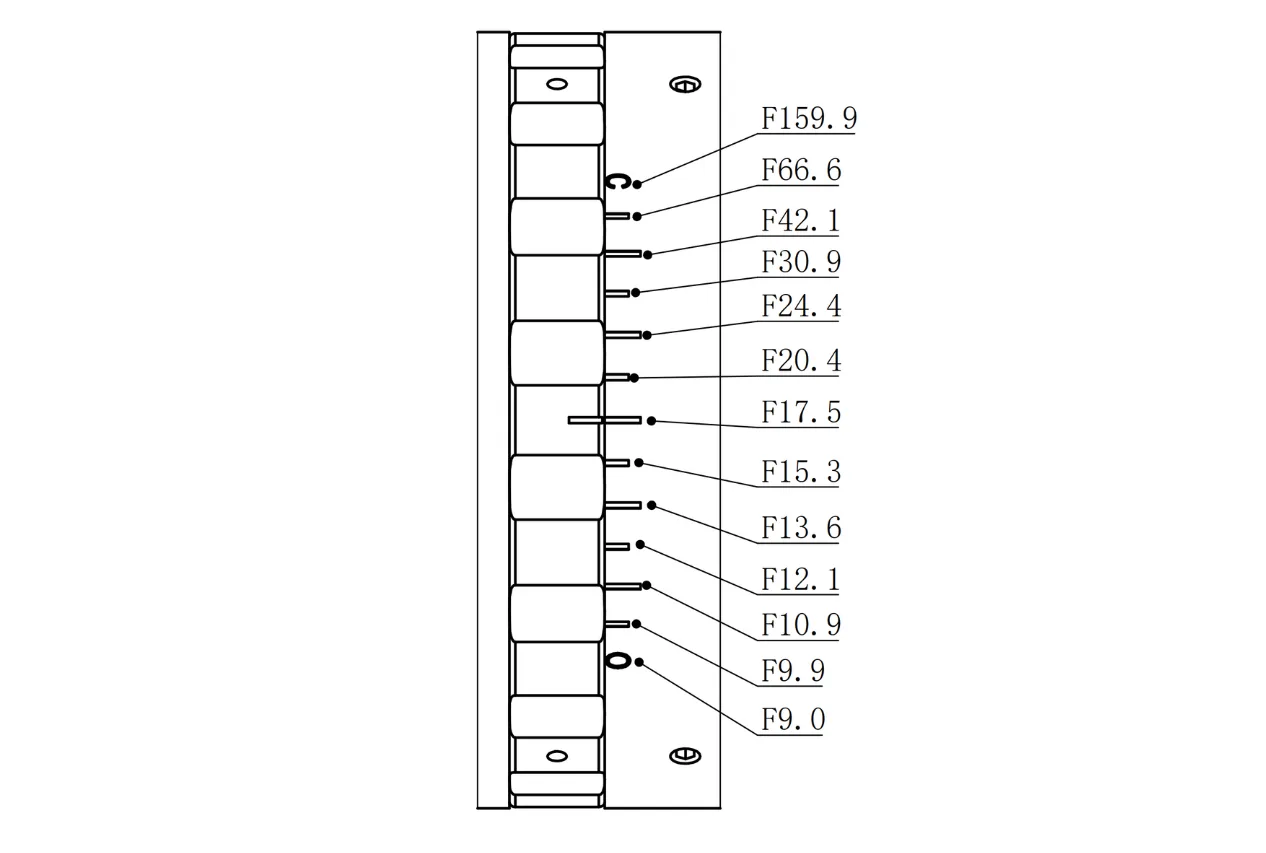

| F No. | F9~F159.9 |
| Resolution | 2.0~35.7μm |
| Image MTF | ＞0.3@115~6.5lp/mm |
| Optical Distortion | ＜0.061% |
| Measurement Range | Sensor Specification | Sensor Size | FOV |
| 71M | 31mmx22mm | 10.3mmx7.3mm | |
| 2” | 23mmx23mm | 7.7mmx7.7mm | |
| 7/4” | 22.5mmx16.9mm | 7.5mmx5.6mm | |
| 2K Line Scan | 2048×10μm | 6.8mm | |
| 4K Line Scan | 4096×7μm | 9.6mm | |
| 8K Line Scan | 8192×5μm | 13.7mm |

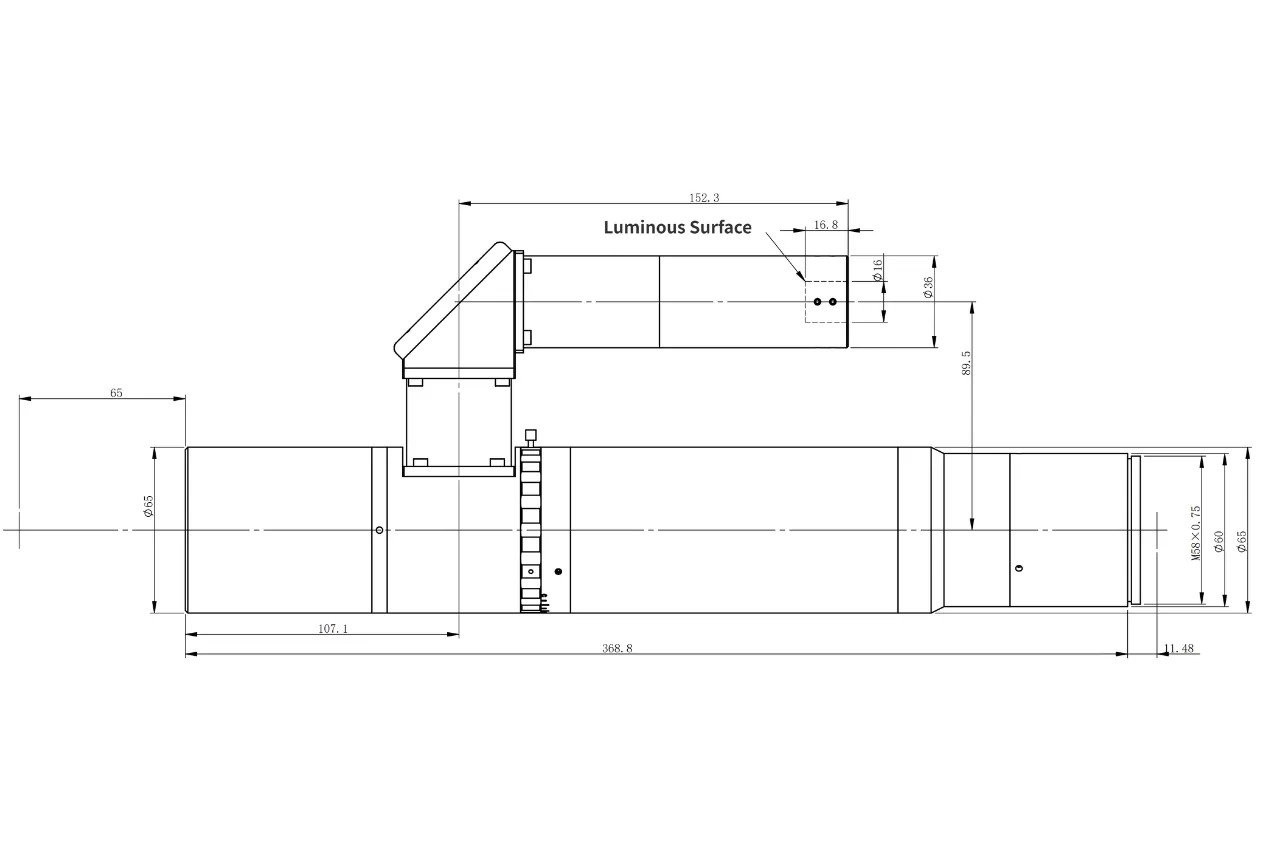

Dimensions
