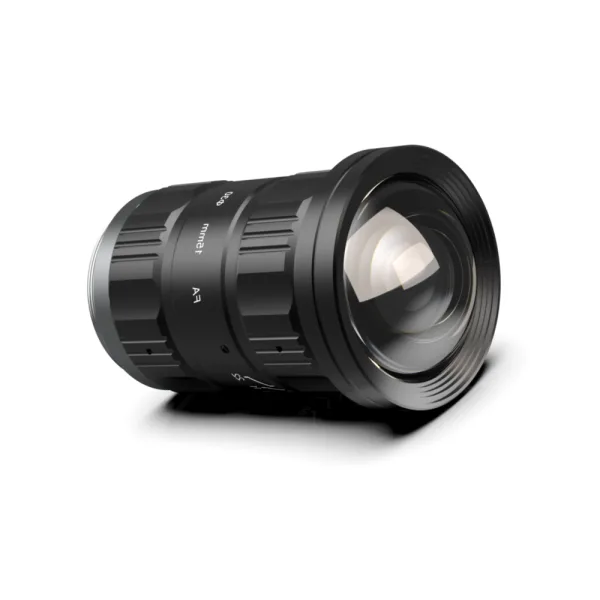

15mm | φ30mm | F2.8 | M42-Mount – 8K Line Scan And Large Format Lens

Features

• Athermal design: -20~+60℃ without blurring
• Better brightness uniformity at the center and edge of the image
• Ultra-low optical distortion
• High resolution performance: 5μm pixel imaging over-pixel performance ≤2 pixel grid
• Anti-vibration focusing fastening method
• Matching adapter ring and extension tube according to the interface and rear flange length difference and magnification range of the camera used
• For 8K3.5μm, 4K7μm, 4K5μm, 2K14μm…

With high resolution, high-speed scanning capability and large field of view, it provides efficient solutions for semiconductor inspection, photovoltaic industry, FPD inspection, factory automation vision tasks such as 3D-AOI and SPI, continuous material inspection, medical imaging, and image recognition and analysis in scientific research.

Resources
Download Datasheet(PDF)
