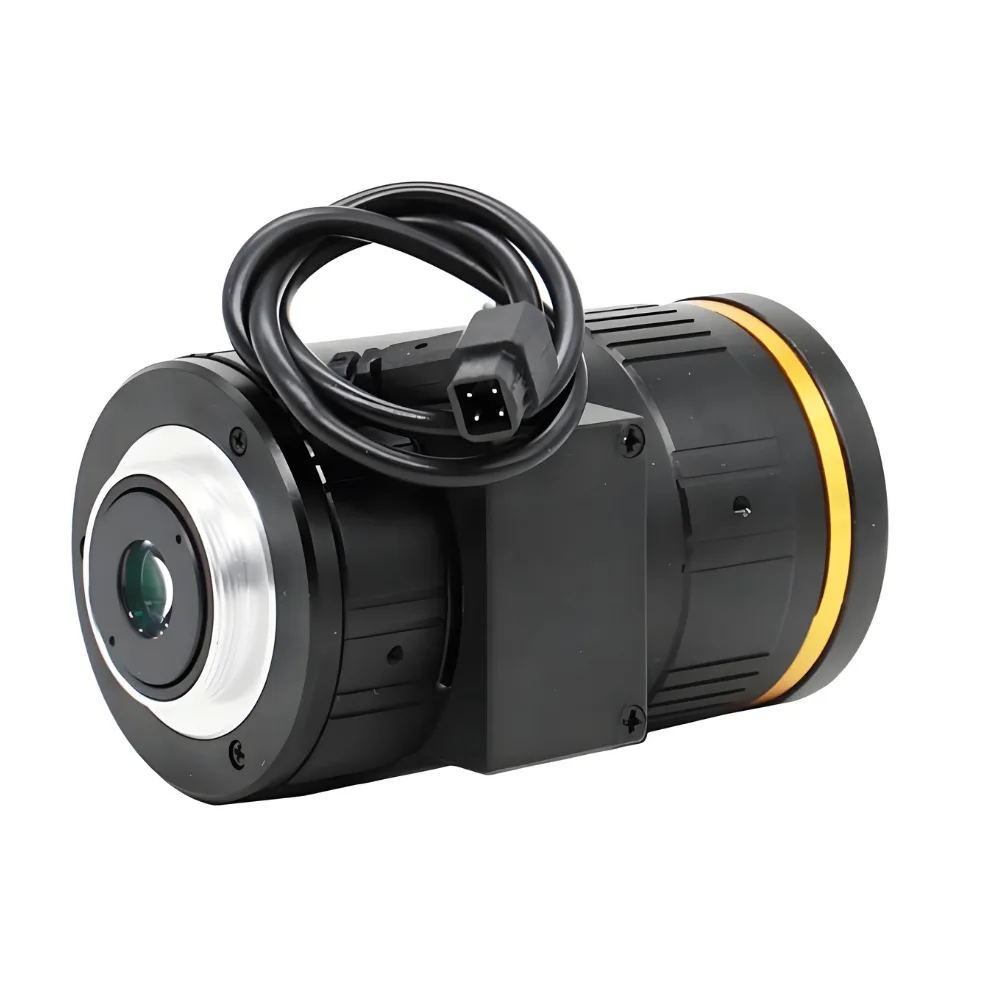

JC-MZ03816-8MP
1/1.8″ | 3.8-16mm | F1.4 | CS-Mount | – 8MP Varifocal Lens
Features
- Variable focal length, supports continuous focal length adjustment
- DC-Auto iris
- Can quickly adjust the field of view to avoid frequent replacement of fixed-focus lenses
- High durability
Suitable for industrial inspection in the electronics industry, printing industry, drone aerial photography, AGC navigation, high temperature vibration, PCB board solder joint defect detection and other application scenarios.
Resources
Download Datasheet(PDF)
Inquiry Now
Description
Description
Product Parameter
| Model No. | JC-MZ03816-8MP | ||
| Focal Length | 3.8-16mm | ||
| Sensor Size | 1/1.8” | ||
| Resolution(Center MTF) | 8MP | ||
| F No. | F1.4-C | ||
| Mount | CS-Mount | ||
| FOV(D*H*V) | Sensor | W:99.8°x 75.2° | T:24.7°x 18.6° |
| 1/1.8” | |||
| M.O.D | 350mm | ||
| Operation | Iris | DC-Auto | |
| Focus | Manual | ||
| Zoom | Manual | ||
| Dimension | Φ46*75mm | ||
| Lens Construction | Aluminum Alloy (Anodized Black) +11G | ||
| BFL | 12.53mm | ||
| Weight | 193g | ||
| Wavelength | 420-1000nm | ||
| Temperature Range | -20℃~+80℃ | ||
| TTL | 91.27mm | ||
| CRA | 12° | ||

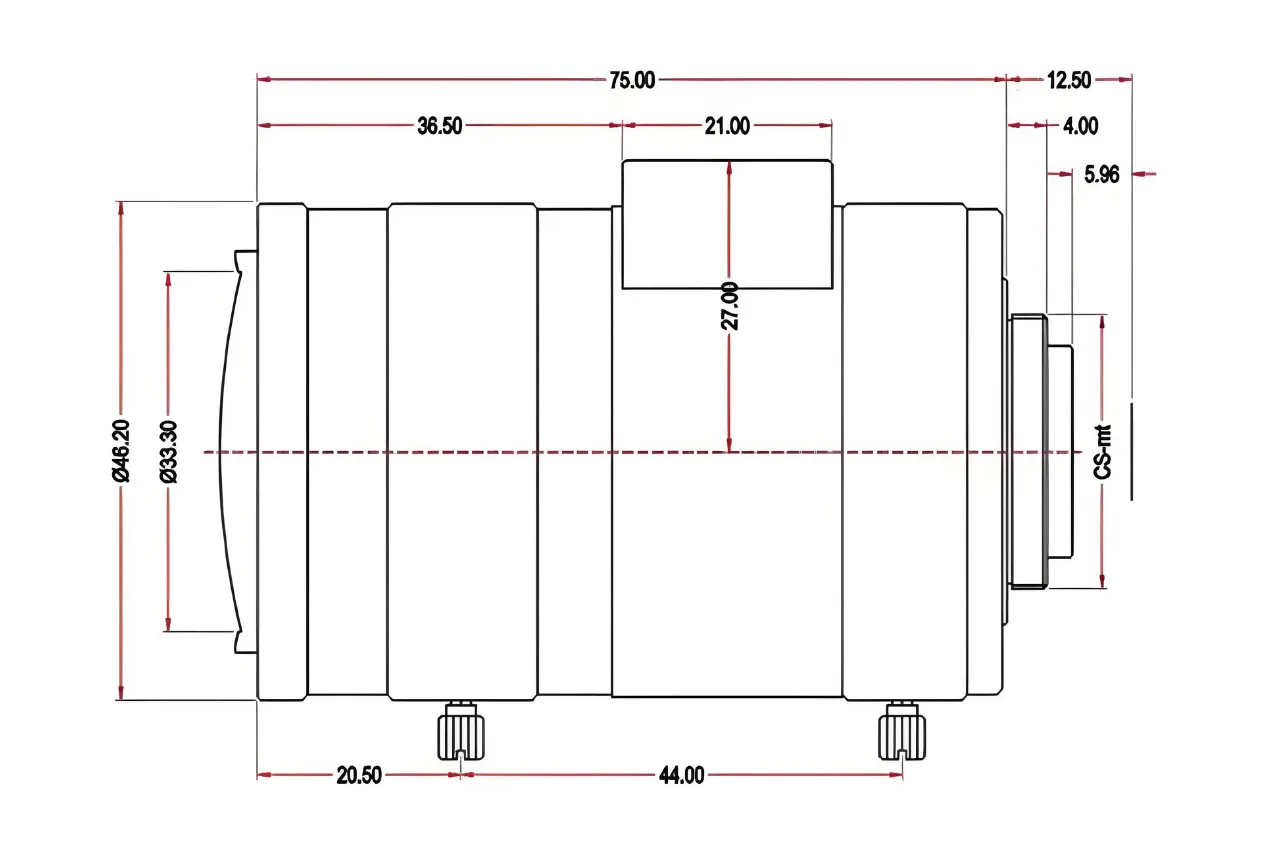

Dimensions
