Objective Lens Series
If you don’t find the lens you need, you can contact customer service directly for more lens recommendations and information.

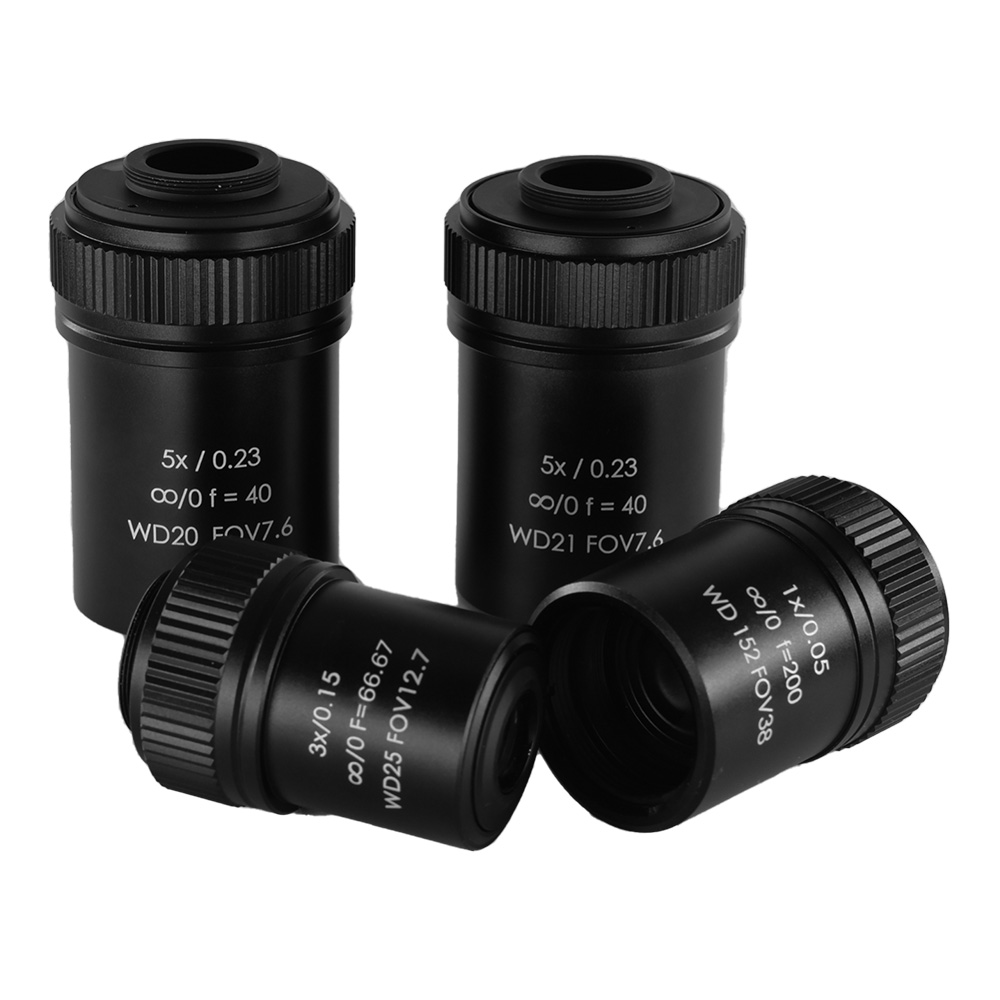

Finite Objectives Series
Model No. | Focal Length | Mag. | NA(mm) | WD(mm) | Resolution(μm) | FOV(mm) | Sensor(mm) | Max. Dia.(mm) | Mount | Lens Length(mm) |
200.12mm | 1X | 0.05 | 152 | 4.5 | 38 | 38 | 41.8 | M26x36TPI | 59.79 | |
66.67mm | 3X | 0.15 | 25 | 2 | 12.7 | 38 | 39.2 | M26x36TPI | 54.75 | |
200mm | 3X | 0.15 | 25 | 2 | 12.7 | 38 | 39.2 | M26x36TPI | 54.75 | |
40mm | 5X | 0.23 | 21 | 1.25 | 7.6 | 38 | 50.2 | M26x36TPI | 69.82 | |
40mm | 5X | 0.23 | 20 | 1.25 | 7.6 | 38 | 50.2 | M26x36TPI | 73.93 | |
200mm | 5X | 0.23 | 21 | 1.25 | 7.6 | 38 | 50.2 | M26x36TPI | 69.82 |
Bio Plan Infinity Biologival Objectives Series
*Can be used with adapter rings such as external M25 to internal RMS, external M26 to internal RMS, external M27 to internal RMS, etc.
Model No. | Mag. | NA | WD(mm) | Focal Length(mm) | Resolution(μm) | ±D.F(μm) | Mount Thread | Object FOV(mm) | Image FOV(mm) | Lens Body Dia.(mm) | Lens Body Height(mm) | Optical System Characteristics | Chromatic Aberration Correction Level | Observation Method |
JC-4X/0.1-19.37 | 4X | 0.1 | 19.37 | 45 | 3.35 | 27.5 | W20.32X0.706(RMS) | 6.25 | 25 | 24 | 27 | Infinity Correction | Achromatic | Brightfield |

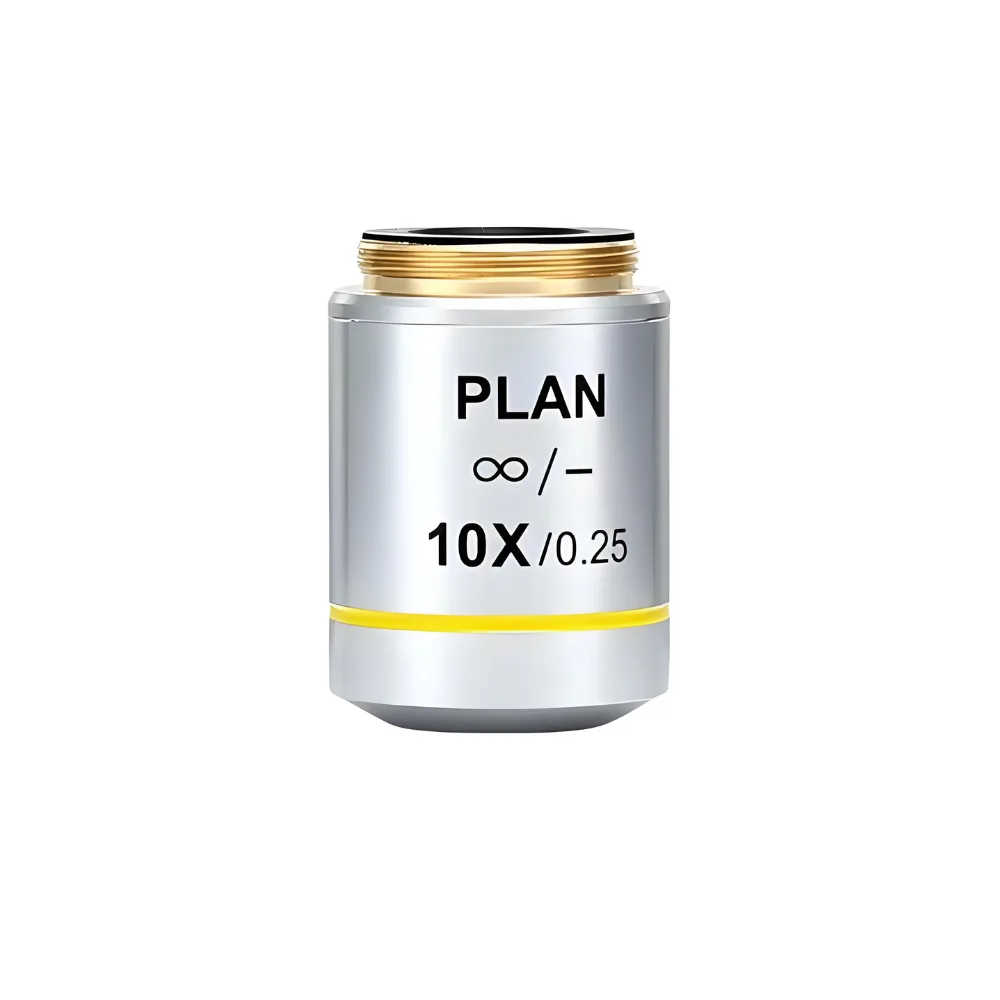

JC-10X/0.25-15.86 | 10X | 0.25 | 15.86 | 18 | 1.34 | 4.4 | W20.32X0.706(RMS) | 2.5 | 25 | 24 | 31 | Infinity Correction | Achromatic | Brightfield |

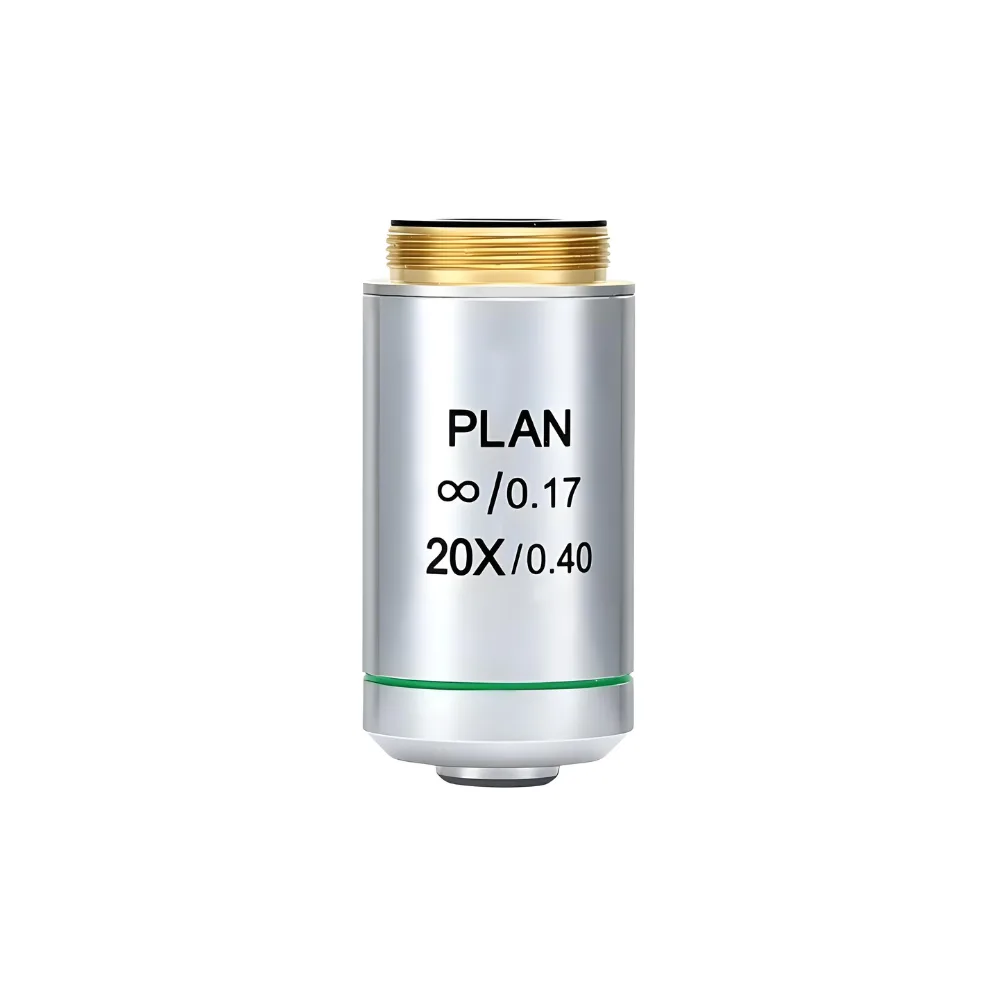

JC-20X/0.4-1.04 | 20X | 0.4 | 1.04 | 9 | 0.83 | 1.72 | W20.32X0.706(RMS) | 1.25 | 25 | 24 | 45 | Infinity Corrected | Achromatic | Brightfield |

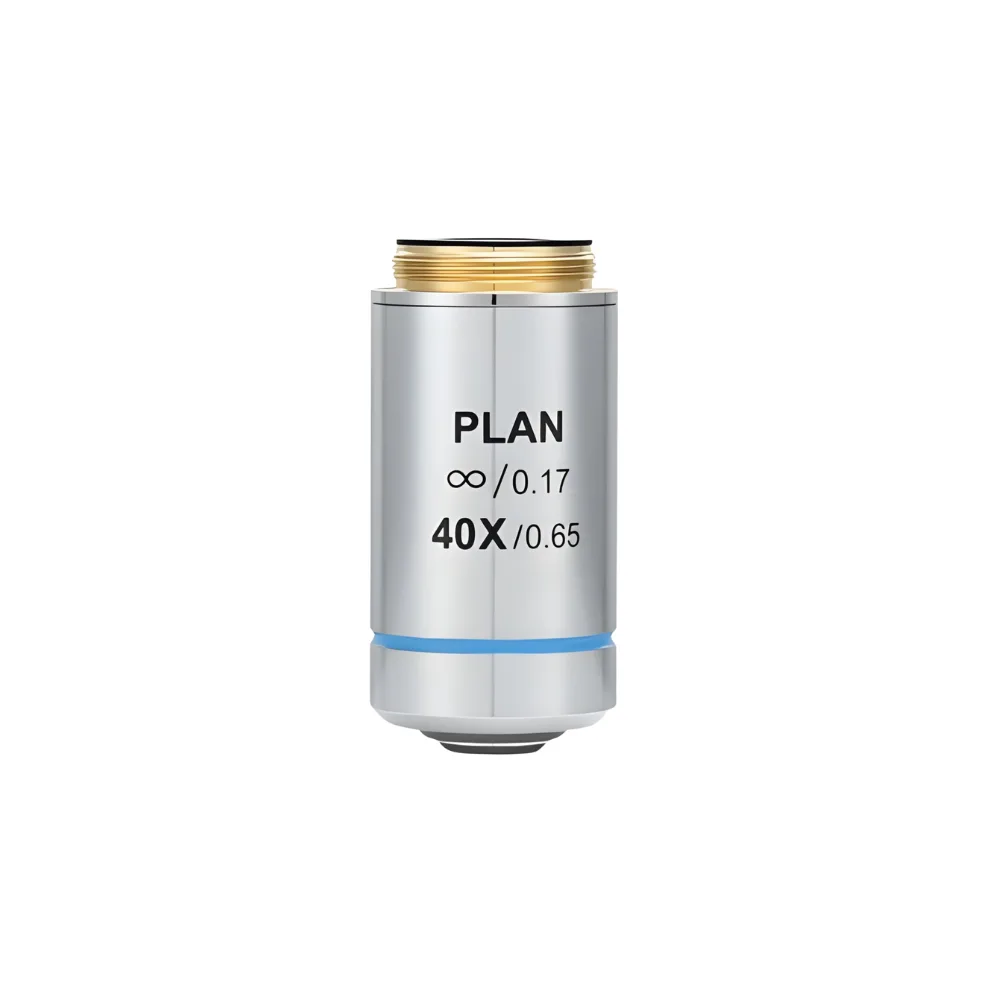

JC-40X/0.65-0.67 | 40X | 0.65 | 0.67 | 4.5 | 0.51 | 0.65 | W20.32X0.706(RMS) | 0.62 | 25 | 24 | 46 | Infinity Corrected | Achromatic | Brightfield |

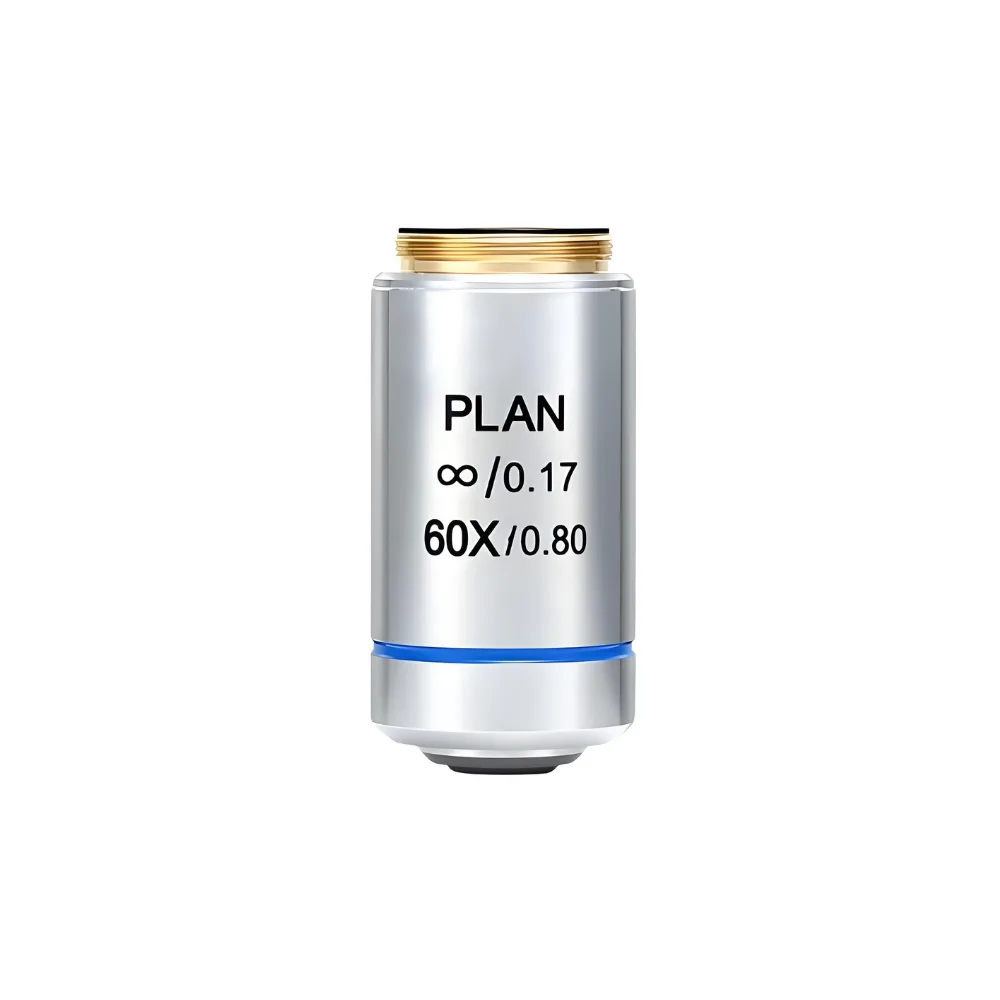

JC-60X/0.8-0.5 | 60X | 0.8 | 0.5 | 3 | 0.41 | 0.43 | W20.32X0.706(RMS) | 0.4 | 25 | 24 | 46 | Infinity Corrected | Achromatic | Brightfield |

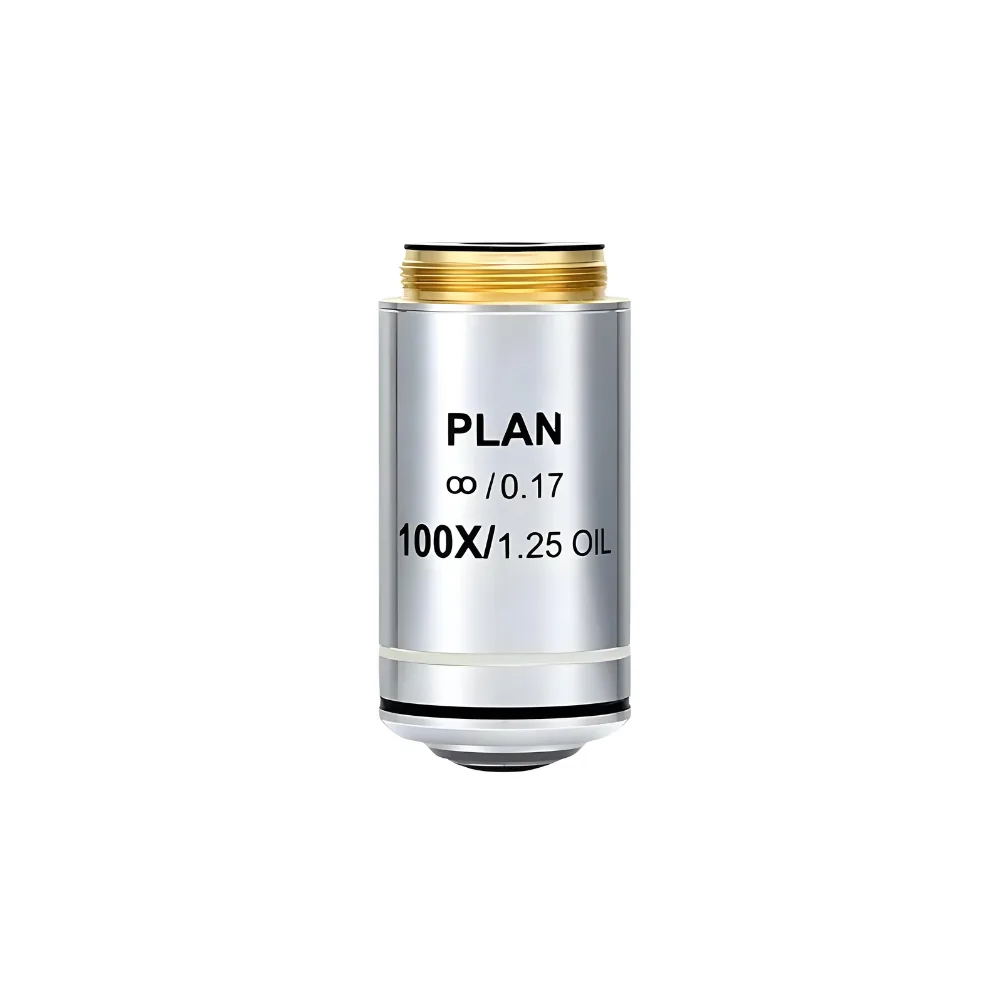

JC-100X/1.25-0.25 | 100X | 1.25 | 0.25 | 1.8 | 0.26 | 0.18 | W20.32X0.706(RMS) | 0.25 | 25 | 24 | 46 | Infinity Corrected | Achromatic | Brightfield |

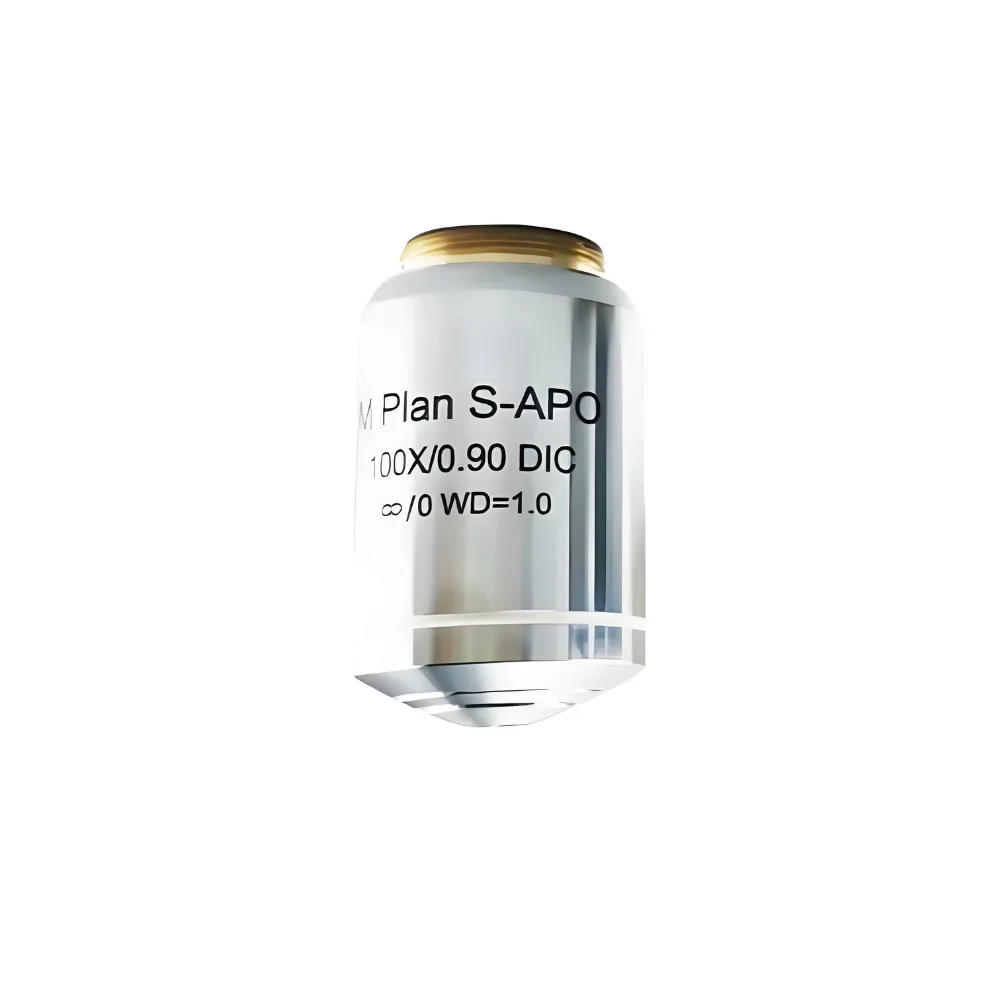

MPlan S-APO Metallographic Objectives Series
Model No. | Mag. | NA | WD(mm) | Resolution(μm) | Focal Length(mm) | ±D.F(μm) | Field Number(mm) | Mount Thread | Chromatic Aberration Correction Level | Observation Method |

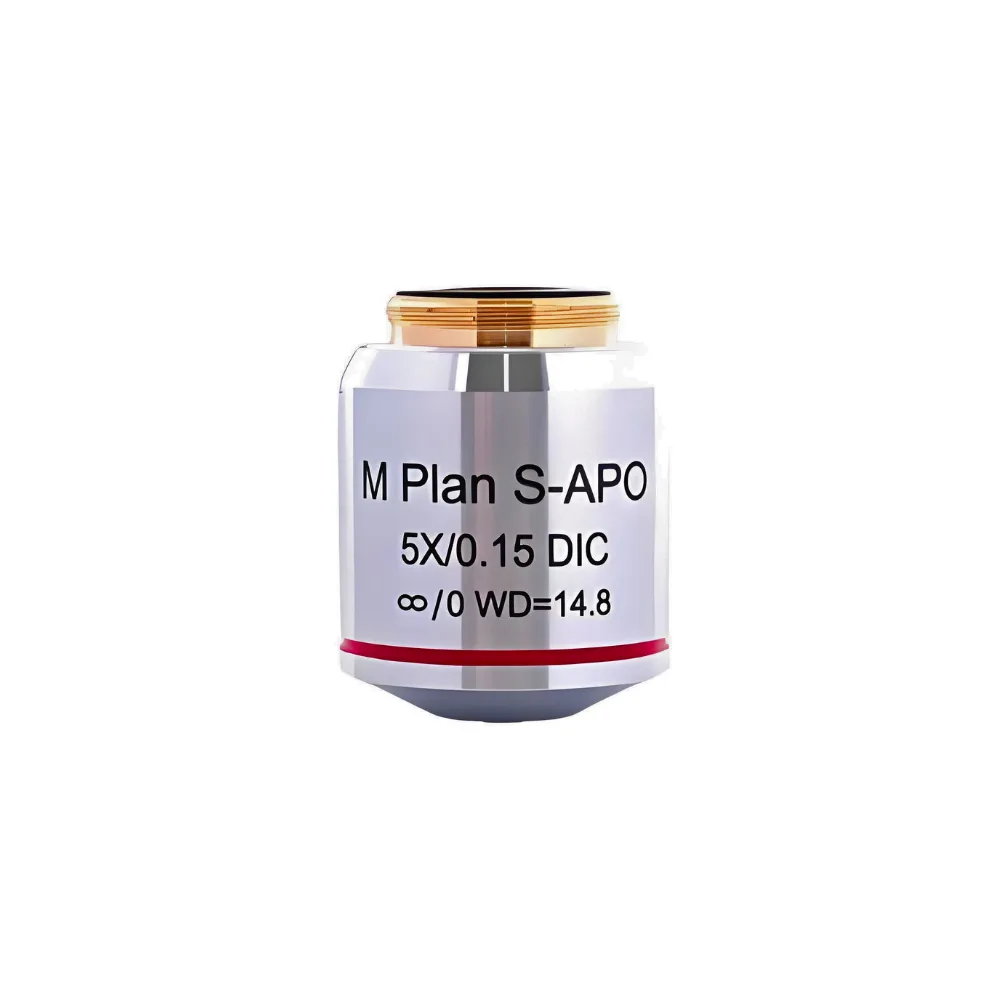

JC-5X/0.15-14.8 | 5X | 0.15 | 14.8 | 4.19 | 72 | 42.97 | 25 | W20.32X0.706(RMS) | Semi-Achromatic | Brightfield |

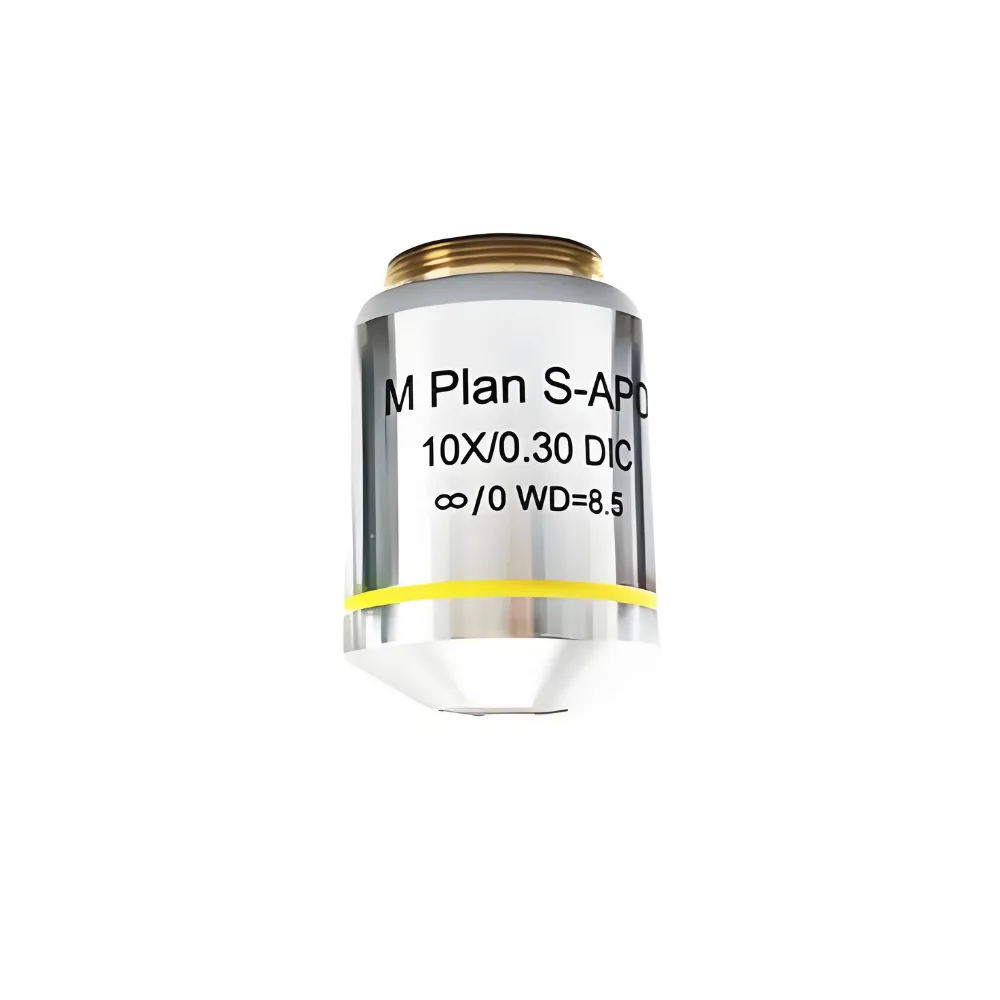

JC-10X/0.3-8.5 | 10X | 0.3 | 8.5 | 1.8 | 36 | 12.27 | 25 | W20.32X0.706(RMS) | Semi-Achromatic | Brightfield |
JC-20X/0.3-11.9 | 20X | 0.3 | 11.9 | 0.9 | 18 | 3.06 | 25 | W20.32X0.706(RMS) | Semi-Achromatic | Brightfield |
JC-50X/0.75-3 | 50X | 0.75 | 3 | 0.4 | 3.6 | 0.7 | 25 | W20.32X0.706(RMS) | Semi-Achromatic | Brightfield |
JC-100X/0.9-1 | 100X | 0.9 | 1 | 0.3 | 1.8 | 0.4 | 25 | W20.32X0.706(RMS) | Semi-Achromatic | Brightfield |
LPlan Infinity Metallographic Objectives Series
Model No. | Mag. | NA | WD(mm) | Focal Length(mm) | ±D.F(μm) | Resolution(μm) | FOV Object(mm) | FOV Image(mm) | Mount Thread | Optical System Characteristics | Chromatic Aberration Correction Level | Observation Method | Type |
JC-2.5X/0.08-11.2 | 2.5X | 0.08 | 11.2 | 72 | 42.96 | 4.1 | 8.8 | 22 | W20.32X0.706(RMS) | Infinity Corrected | Achromatic | Brightfield | Long Distance |

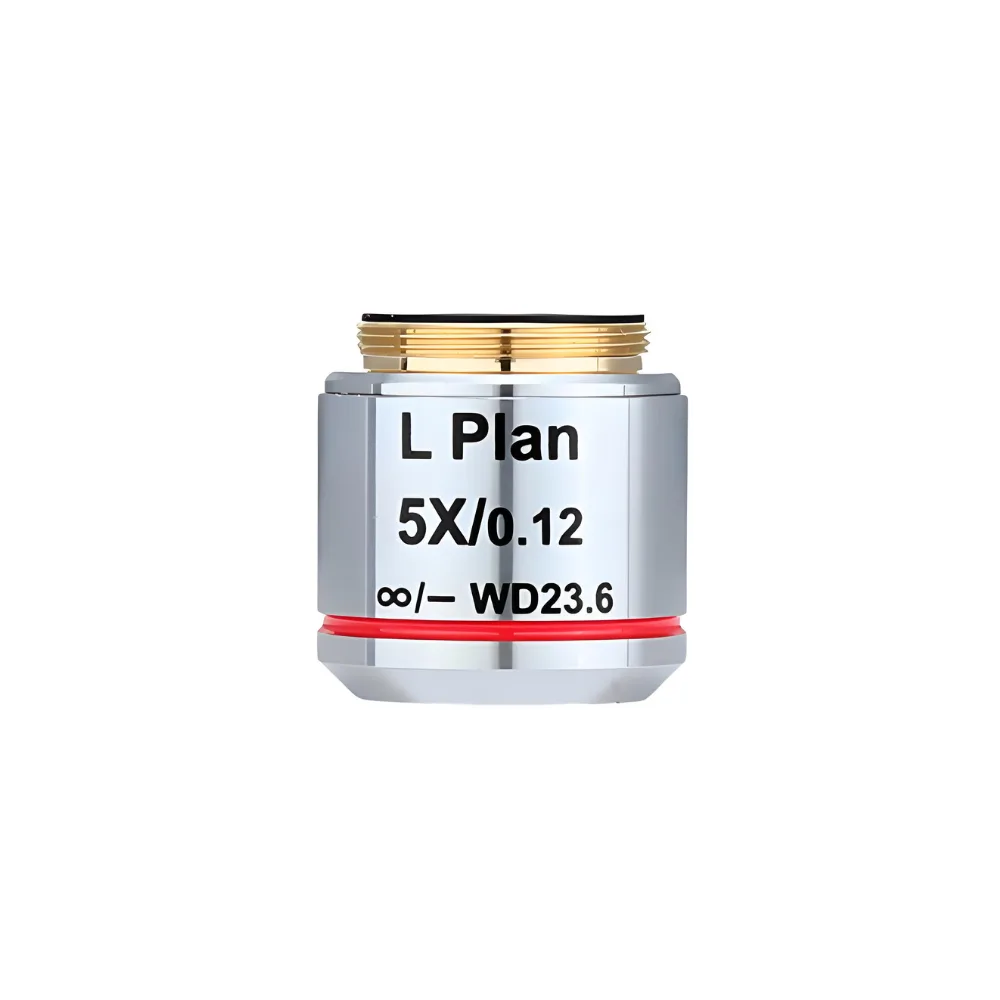

5X | 0.12 | 23.6 | 40 | 19.09 | 2.8 | 4.5 | 22.5 | W20.32X0.706(RMS) | Infinity Corrected | Achromatic | Brightfield | Long Distance | |

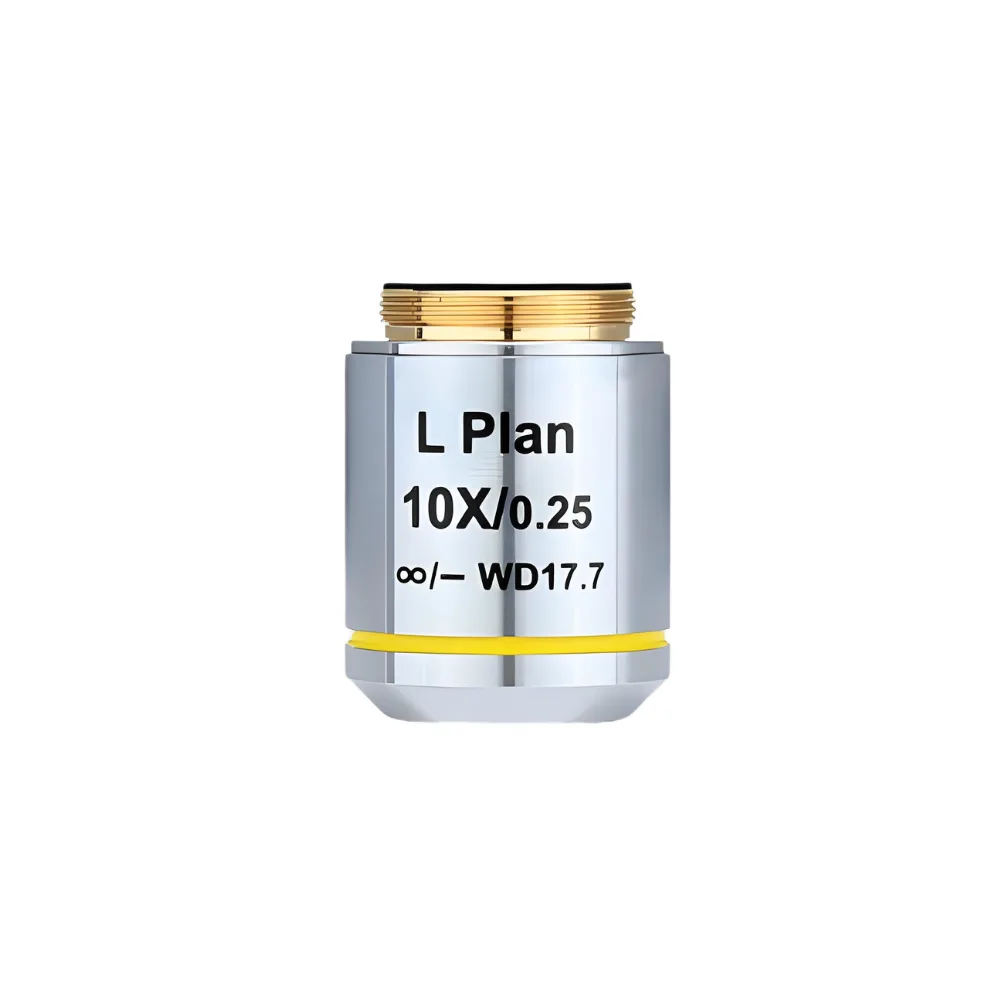

JC-10X/0.25-17.7 | 10X | 0.25 | 17.7 | 20 | 4.4 | 1.34 | 2.2 | 22.5 | W20.32X0.706(RMS) | Infinity Corrected | Achromatic | Brightfield | Long Distance |

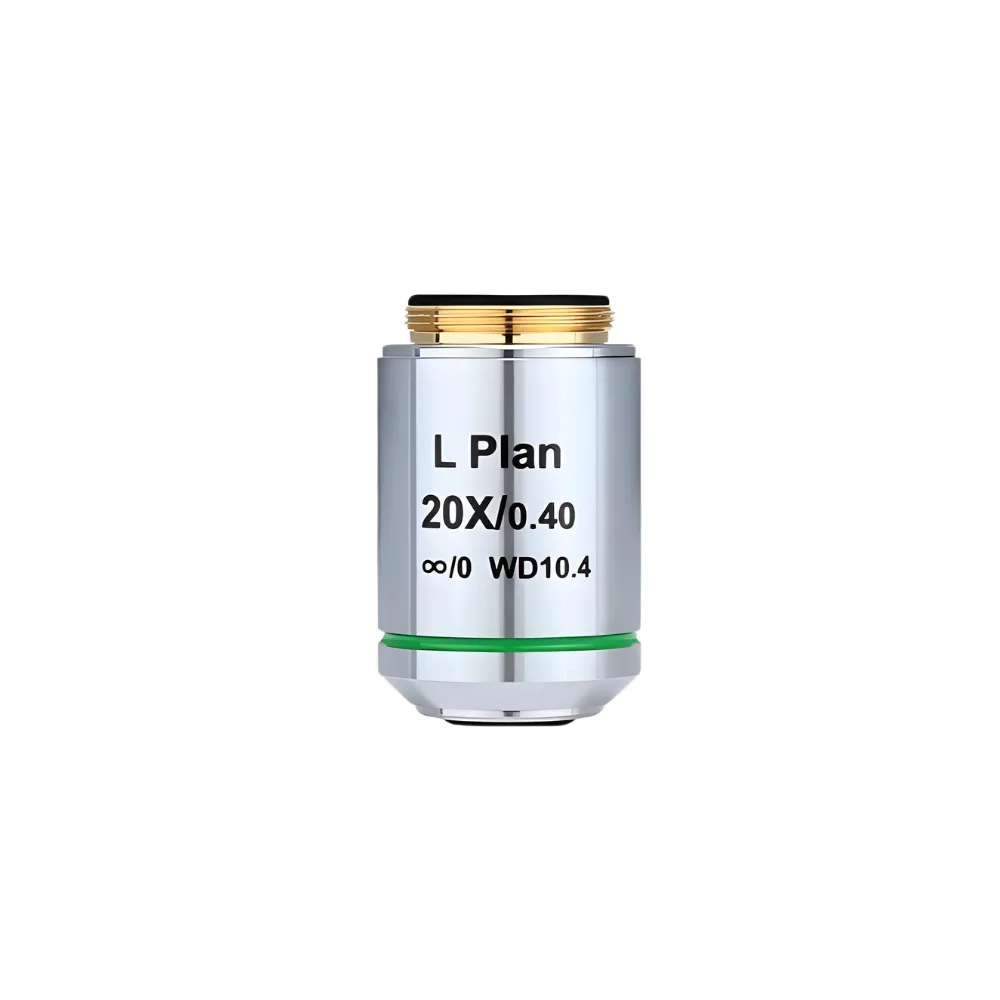

JC-20X/0.4-10.4 | 20X | 0.4 | 10.4 | 10 | 1.71 | 0.8 | 1.1 | 22.5 | W20.32X0.706(RMS) | Infinity Corrected | Achromatic | Brightfield | Long Distance |

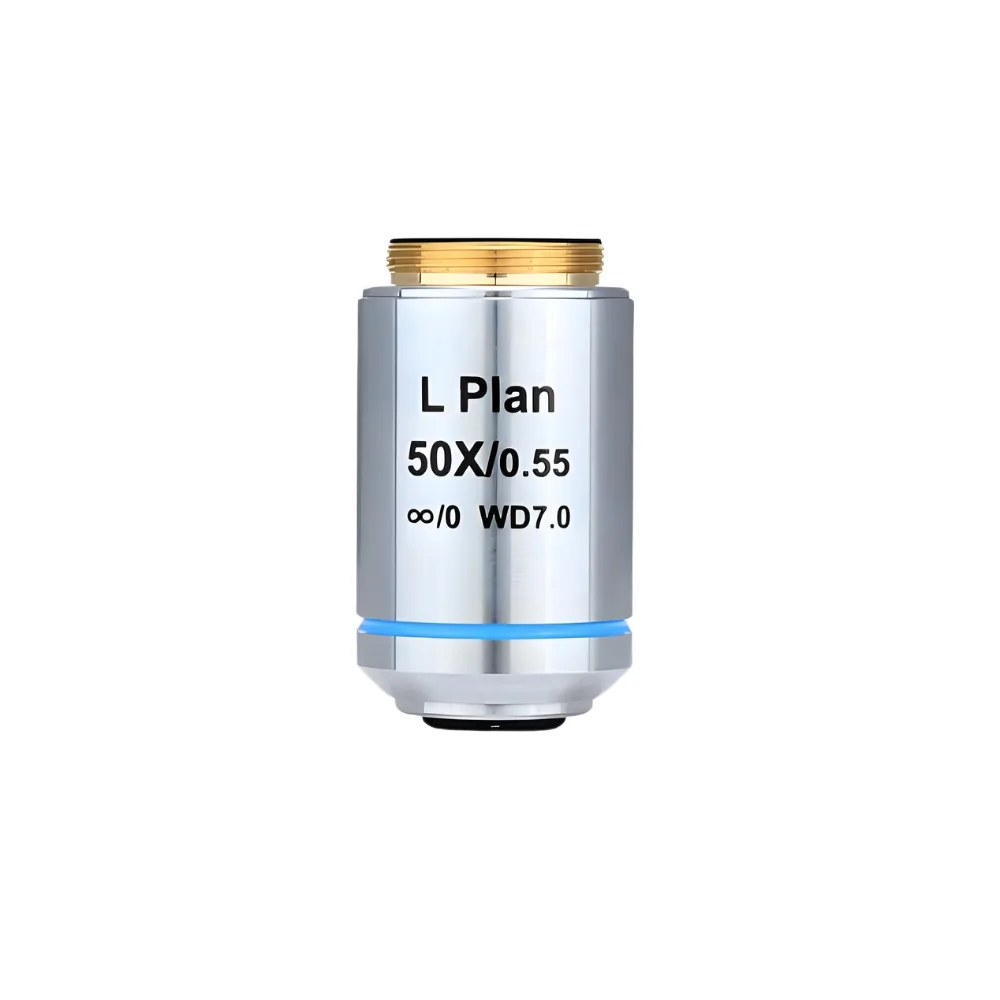

JC-50X/0.55-7.0 | 50X | 0.55 | 7.0 | 4 | 0.9 | 0.61 | 0.45 | 22.5 | W20.32X0.706(RMS) | Infinity Corrected | Achromatic | Brightfield | Long Distance |

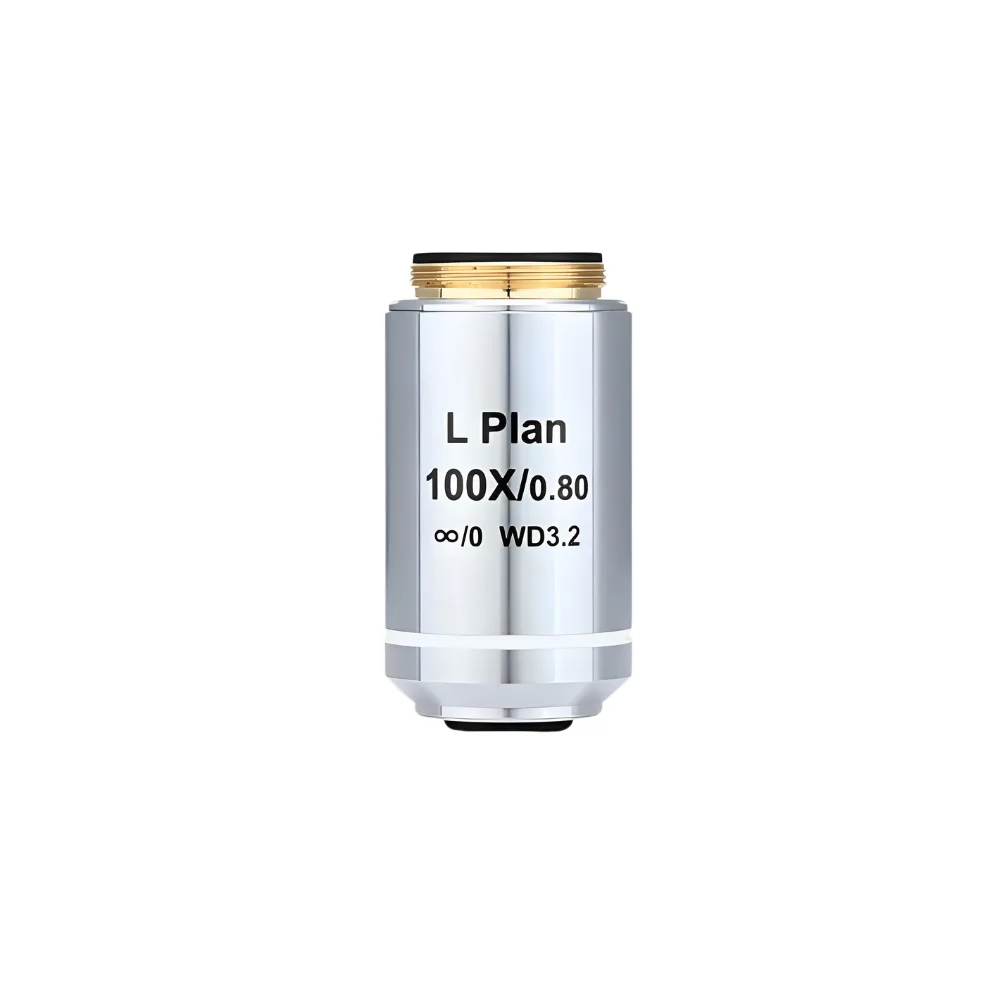

JC-100X/0.8-3.2 | 100X | 0.8 | 3.2 | 2 | 0.43 | 0.41 | 0.22 | 22.5 | W20.32X0.706(RMS) | Infinity Corrected | Achromatic | Brightfield | Long Distance |
P95 APO LWD Metallurgical Objectives Series
VISIBLE LIGHT
Model No. | Mag. | NA | WD(mm) | 250FN(mm) | Tube Lens(mm) | Focal Length(mm) | Screw | 1" Camera | Resolution(μm) | ±D.F(μm) | Length(mm) | Dia.(mm) |
JC-2XAPO-NA0.06 | 2X | 0.055 | 34 | 12 | F=180/200 | 100 | M26 | 4.8x6.4 | 5 | 91 | 66.5 | 34 |
JC-5XAPO-NA0.15 | 5X | 0.15 | 44.9 | 4.8 | F=180/200 | 40 | M26 | 1.92x2.56 | 2.5 | 14 | 55.65 | 34 |
JC-10XAPO-NA0.3 | 10X | 0.3 | 33.9 | 2.4 | F=180/200 | 20 | M26 | 0.96x1.28 | 1 | 3.5 | 66.6 | 34 |
JC-20XAPO-NA0.3 | 20X | 0.3 | 30.9 | 1.2 | F=180/200 | 10 | M26 | 0.48x0.64 | 1 | 3.2 | 69.65 | 34 |
JC-20XAPO-NA0.45 | 20X | 0.45 | 20.1 | 1.2 | F=180/200 | 10 | M26 | 0.48x0.64 | 0.7 | 1.55 | 80.45 | 34 |
JC-50XAPO-NA0.45 | 50X | 0.45 | 20.1 | 0.5 | F=180/200 | 4 | M26 | 0.19x0.26 | 0.7 | 0.9 | 80.45 | 34 |
JC-50XAPO-NA0.65 | 50X | 0.65 | 9.4 | 0.5 | F=180/200 | 4 | M26 | 0.19x0.26 | 0.4 | 0.61 | 91.1 | 34 |
JC-100XAPO-NA0.65 | 100X | 0.8 | 6 | 0.24 | F=180/200 | 2 | M26 | 0.1x0.13 | 0.4 | 0.4 | 94.5 | 36 |
NEAR INFRARED
Model No. | Mag. | NA | WD(mm) | 250FN(mm) | Tube Lens(mm) | Focal Length(mm) | Screw | 1" Camera | Resolution(μm) | ±D.F(μm) | Length(mm) | Dia.(mm) |
JC-2XAPO-NA0.06NIR | 2X | 0.055 | 34 | 12 | F=180/200 | 100 | M26 | 4.8X6.4 | 5 | 91 | 66.5 | 34 |
JC-5XAPO-NA0.15NIR | 5X | 0.15 | 44.9 | 4.8 | F=180/200 | 40 | M26 | 1.92X2.56 | 2.5 | 14 | 55.65 | 34 |
JC-10XAPO-NA0.3NIR | 10X | 0.3 | 33.9 | 2.4 | F=180/200 | 20 | M26 | 0.96X1.28 | 1 | 3.5 | 66.6 | 34 |
JC-20XAPO-NA0.3NIR | 20X | 0.3 | 30.9 | 1.2 | F=180/200 | 10 | M26 | 0.48X0.64 | 1 | 3.2 | 69.65 | 34 |
JC-20XAPO-NA0.45NIR | 20X | 0.45 | 20.1 | 1.2 | F=180/200 | 10 | M26 | 0.48X0.64 | 0.7 | 1.55 | 80.45 | 34 |
JC-50XAPO-NA0.45NIR | 50X | 0.45 | 20.1 | 0.5 | F=180/200 | 4 | M26 | 0.19X0.26 | 0.7 | 0.9 | 80.45 | 34 |
JC-50XAPO-NA0.65NIR | 50X | 0.65 | 9.4 | 0.5 | F=180/200 | 4 | M26 | 0.19X0.26 | 0.4 | 0.61 | 91.1 | 34 |
JC-100XAPO-NA0.8NIR | 100X | 0.8 | 6 | 0.24 | F=180/200 | 2 | M26 | 0.1X0.13 | 0.4 | 0.4 | 94.5 | 36 |
