JC-CTH11-05X-220C
1.1″ | 0.5X | F8.3 | 2.7mm – Object Telecentric Lens
Features
- Perfect image quality, supports 10MP digital cameras;
- Robust structural design with high anti-vibration
- Excellent center and peripheral imaging
- Widely used in high-precision visual positioning and other applications.
Suitable for semiconductor inspection, transparent material inspection, glass bottle defect recognition, high-speed measurement and other industry applications, online screening of lithium electrode coating defects.
Resources
Inquiry Now
Description
Description

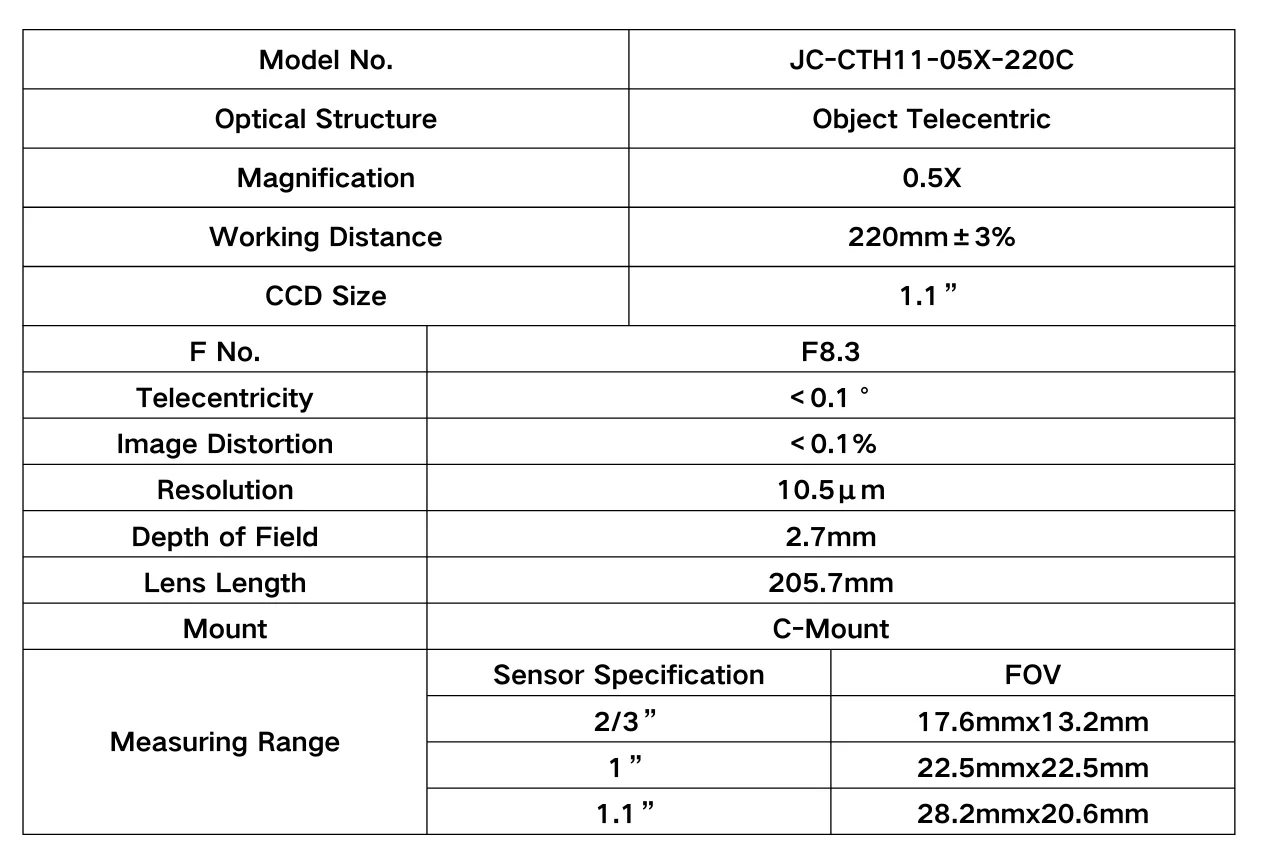

Product Parameter
| Model No. | JC-CTH11-05X-220C |
| Optical Structure | Object Telecentric |
| Magnification | 0.5X |
| Working Distance | 220mm±3% |
| CCD Size | 1.1” |
| F No. | F8.3 | |
| Telecentricity | ＜0.1° | |
| Image Distortion | ＜0.1% | |
| Resolution | 10.5μm | |
| Depth of Field | 2.7mm | |
| Lens Length | 205.7mm | |
| Mount | C-Mount | |
| Measurement Range | Sensor Specification | FOV |
| 2/3” | 17.6mmx13.2mm | |
| 1” | 22.5mmx22.5mm | |
| 1.1” | 28.2mmx20.6mm | |

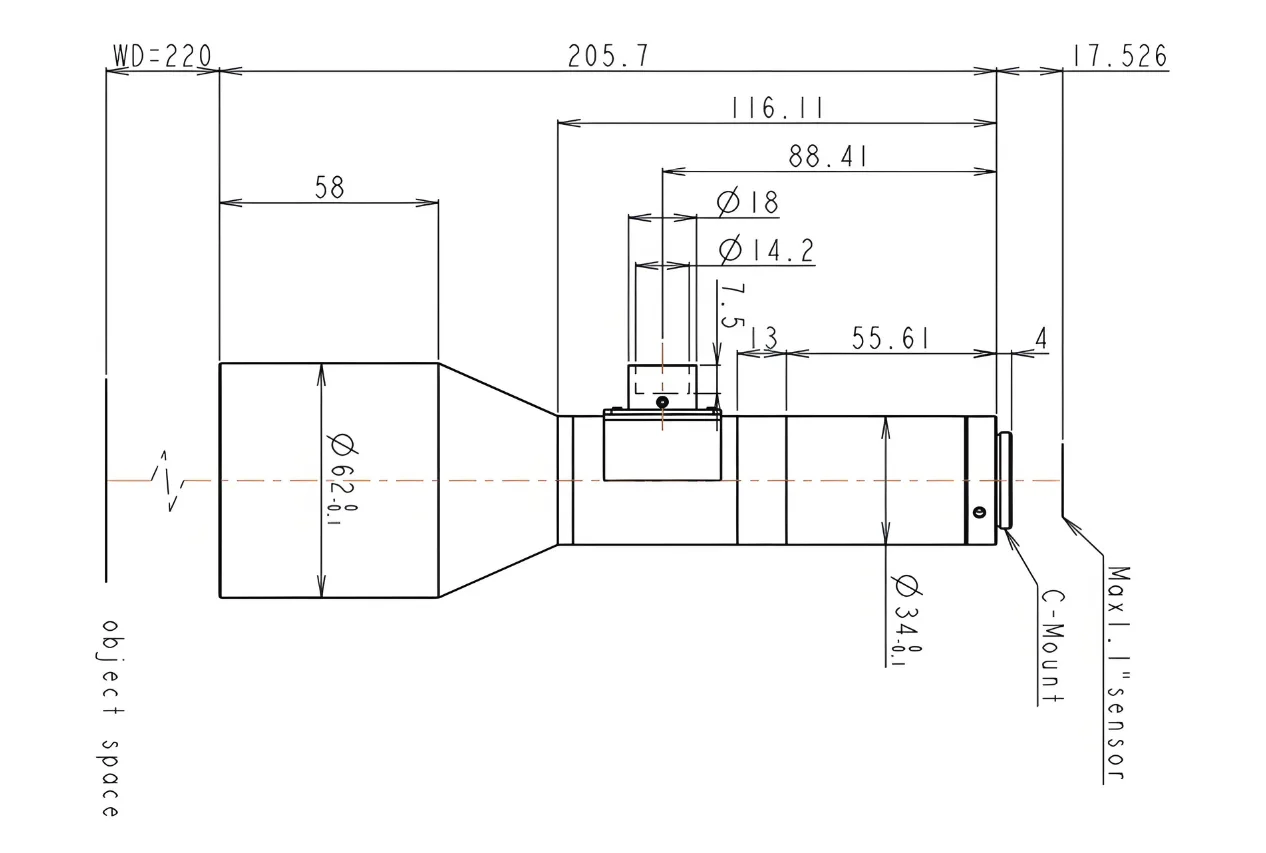

Dimensions
