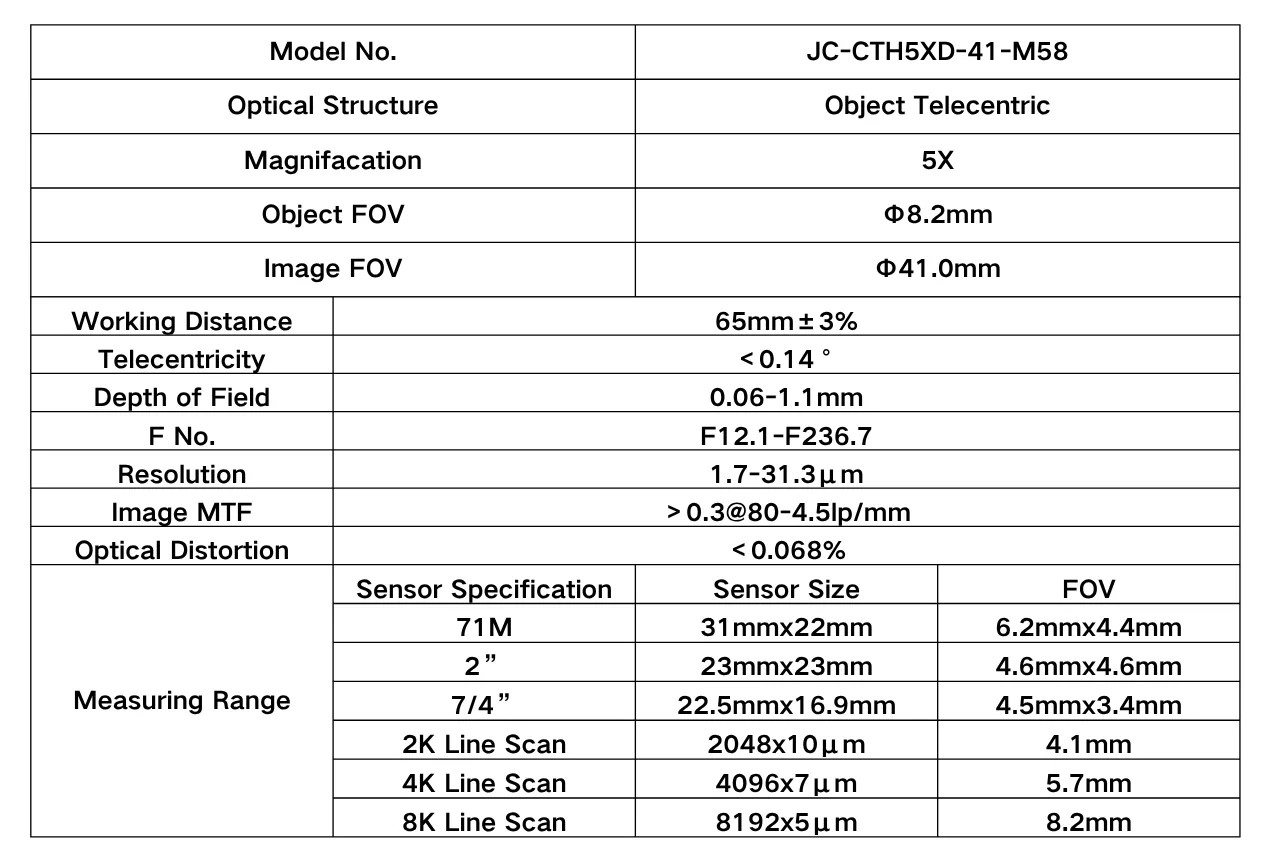

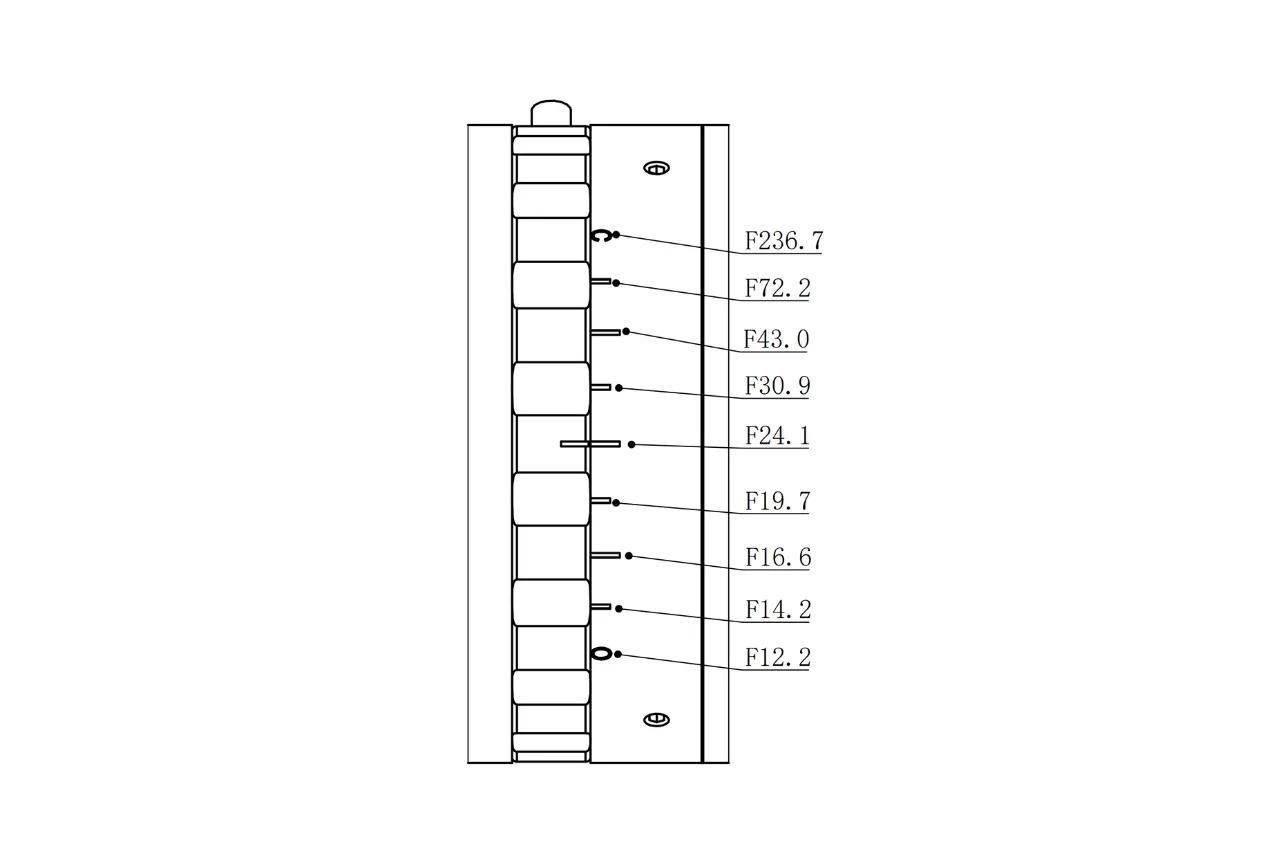

＜0.14° | 5X | F12.1-F236.7 | 1.7-31.3μm – Line Scan Object Telecentric Lens

Features

To ensure uniform and effective coaxial illumination, the following performance requirements apply to point light sources:

1. Uniform, effective luminous area ≥ φ12mm
2. Uniform, effective luminous angle ≥ ±13° (approximately NA 0.22)

With its unique optical properties and excellent performance, it plays an important role in many fields such as industrial automation, semiconductor manufacturing, mechanical parts inspection, scientific research experiments, medical imaging and machine vision systems.
