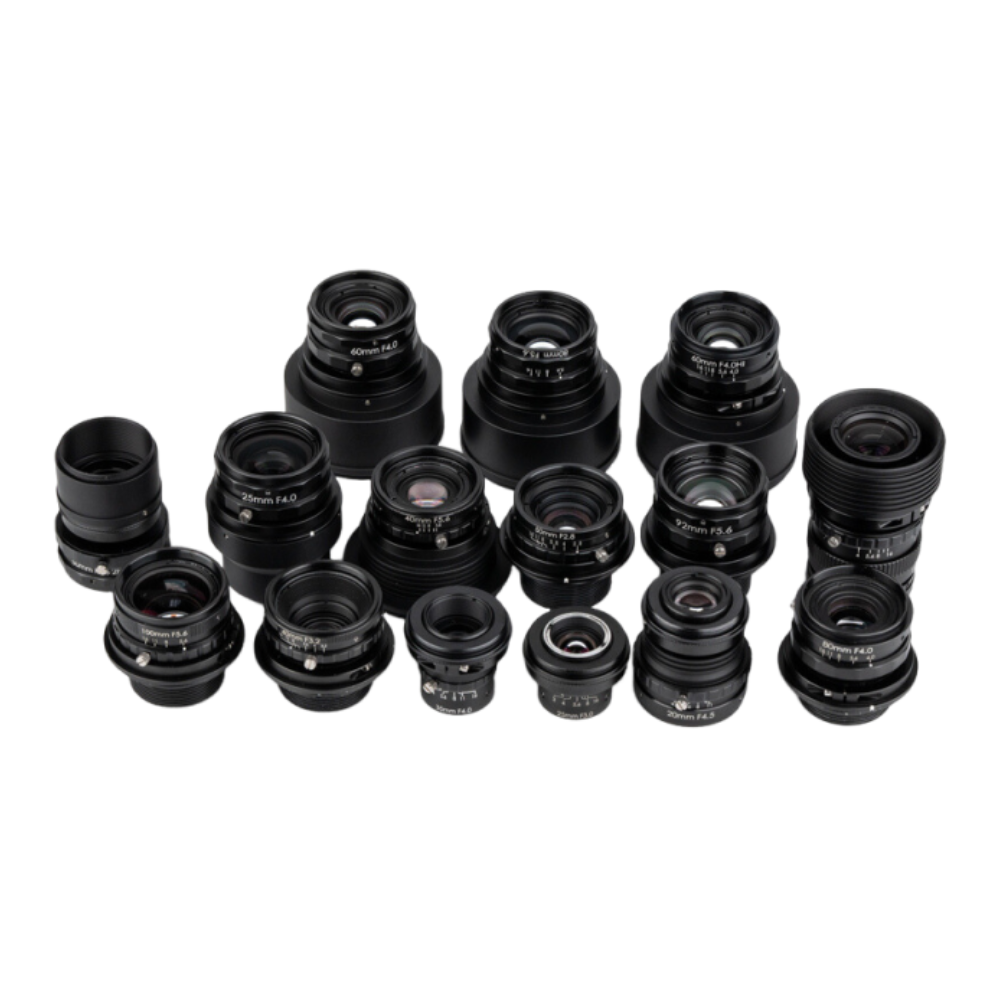

4K Line Scan Lens Series
4K Line Scan Lens Series
*Line scan and large format lenses need to be matched with adapter rings and extension rings according to the camera sensor size, camera mount thread size and shooting field of view. Please contact our sales staff to confirm the parameters. Thank you!
Model No. | Focal Length | Mag. | Sensor Size | Resolution | F No. | Distortion | WD(mm) | Mount |
20mm | 0.015X-0.2X | 30mm | 4K7μ | F4.5~F11 | <2.17% | 170～Inf. | M42 X 1.0 | |
25mm | 0.017X-0.275X | 30mm | 4K7μ | F3.0~F16 | <0.3% | 100～1500 | M42 X 1.0 | |
25mm | 0.02X-0.07X | 30mm | 4K7μ | F4.0~F16 | <0.3% | 350～Inf. | M42/F-Mount | |
35mm | 0.0X-0.5X | 30mm | 4K7μ | F4.0~F16 | <0.01% | 100～Inf. | M42X1.0 | |
50mm | 0.02X-0.2X | 30mm | 4K7μ | F2.6~F16 | <0.01% | 200～Inf. | M42X1.0 |
